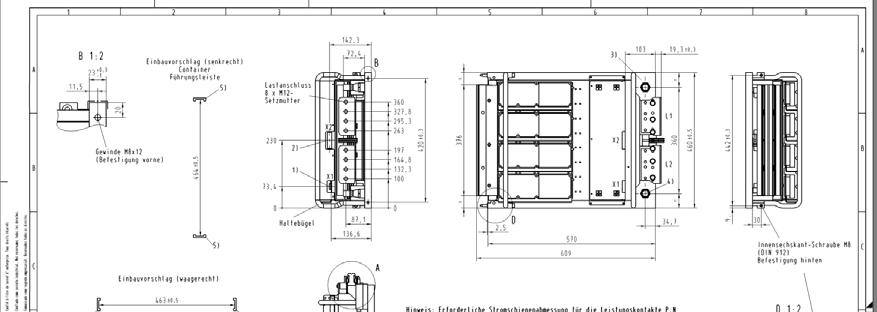

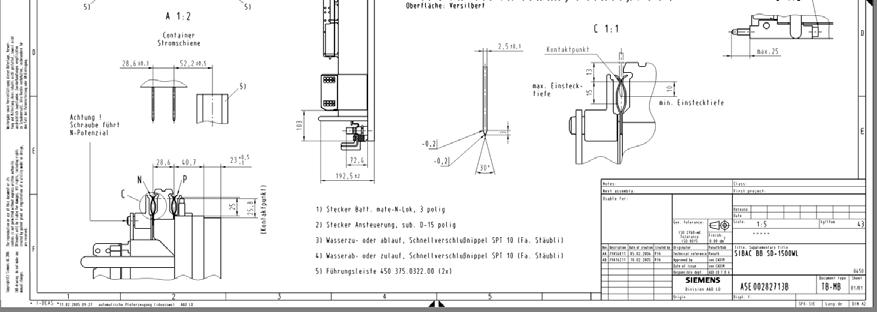

7.5.4 Drawing

from Cat Electric Rope Shovel 295HD/ HR Drive Converter Cabinet Bucyrus Shovel Operation & Maintenance Ma

7.5.2 Testing

A13: A13X1, A13X2 A11: A11X2, A11X1

• Mount respective coolant input output pipes • Mount locking bracket at front by M8 screw, plain washer & spring washer with bit no 13 & torque wrench Torque 25 Nm

CAUTION

When installing the phase module ensure that the color codes match. The color of the coding plate of the phase module to be installed must match that of the coding plate attached to the DCC frame.

7.5.4 Drawing

Siemens Ltd. A5E01511750J/ 4M-2601-1645240 AC Shovel 295HD/ HR DCC Operation & Maintenance Manual 107
