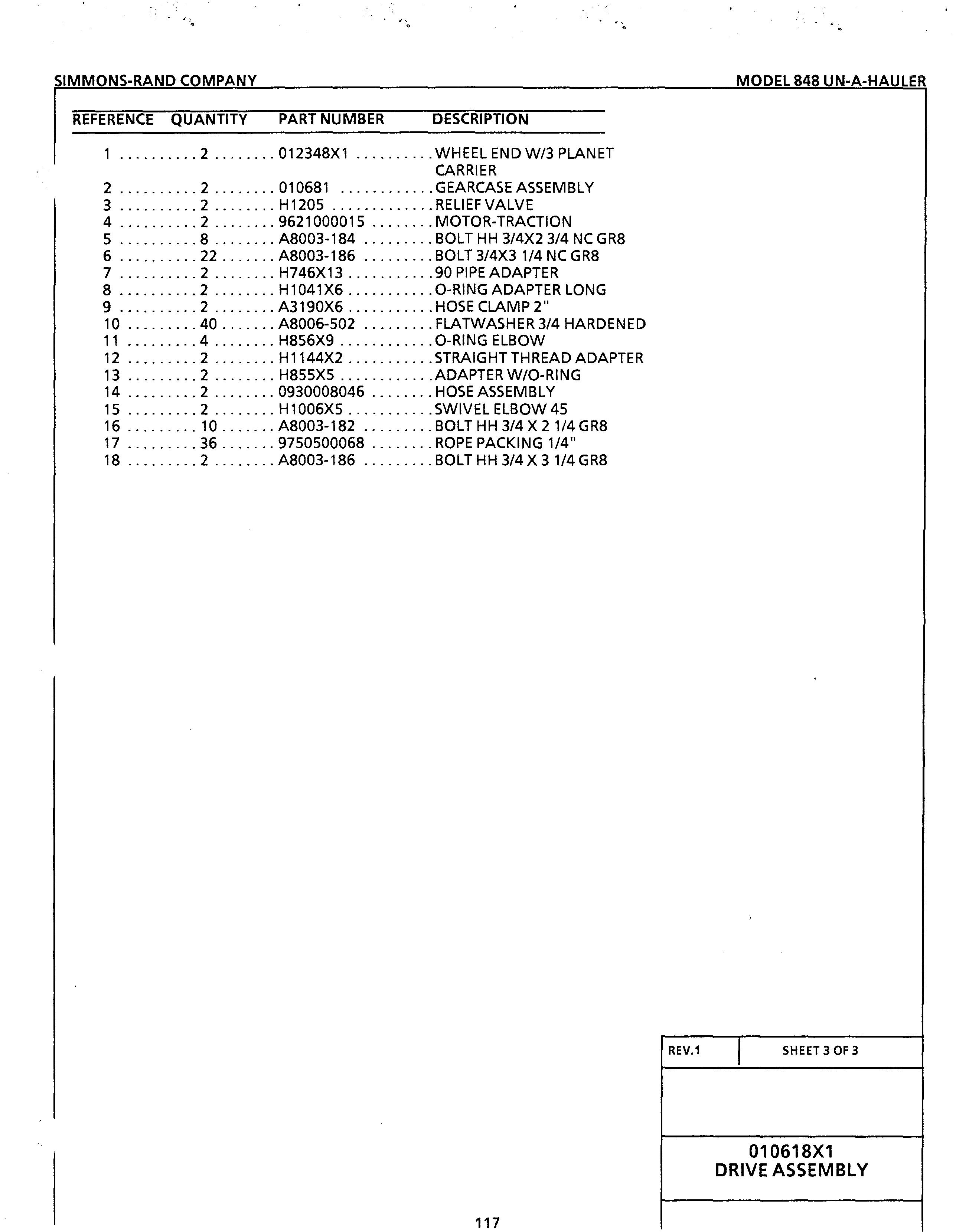

REFERENCE QUANTITY PART NUMBER DESCRIPTION

1 .......... 2 ........ 012348X1 .......... WHEEL END W/3 PLANET CARRIER 2 .......... 2 ........ 010681 ............ GEARCASE ASSEMBLY 3 .......... 2 ........ H1205 ............. RELIEF VALVE 4 .......... 2 ........ 9621000015 ........ MOTOR-TRACTION 5 .......... 8 ........ A8003-184 ......... BOLTHH3/4X23/4NCGR8 6 .......... 22 ....... A8003-186 ......... BOLT 3/4X3 1/4 NC GR8 7 .......... 2 ........ H746X13 ........... 90 PIPE ADAPTER 8 .......... 2 ........ H1041X6 ........... 0-RING ADAPTER LONG 9 .......... 2 ........ A3190X6 ........... HOSE CLAMP 2" 10 ......... 40 ....... A8006-502 ......... FLATWASHER3/4HARDENED 11 ......... 4 ........ H856X9 ............ 0-RING ELBOW 12 ......... 2 ........ H1144X2 ........... STRAIGHTTHREADADAPTER 13 ......... 2 ........ H855X5 ............ ADAPTER W/0-RING 14 ......... 2 ........ 0930008046 ........ HOSE ASSEMBLY 15 ......... 2 ........ H 1 006X5 ........... SWIVEL ELBOW 45 16 ......... 10 ....... A8003-182 ......... BOLT HH 3/4X 2 1/4 GR8 17 ......... 36 ....... 9750500068 ........ ROPE PACKING 1/4" 18 ......... 2 ........ A8003-186 ......... BOLT HH 3/4 X 3 1/4 GR8

REV.1 l SHEET 3 OF 3

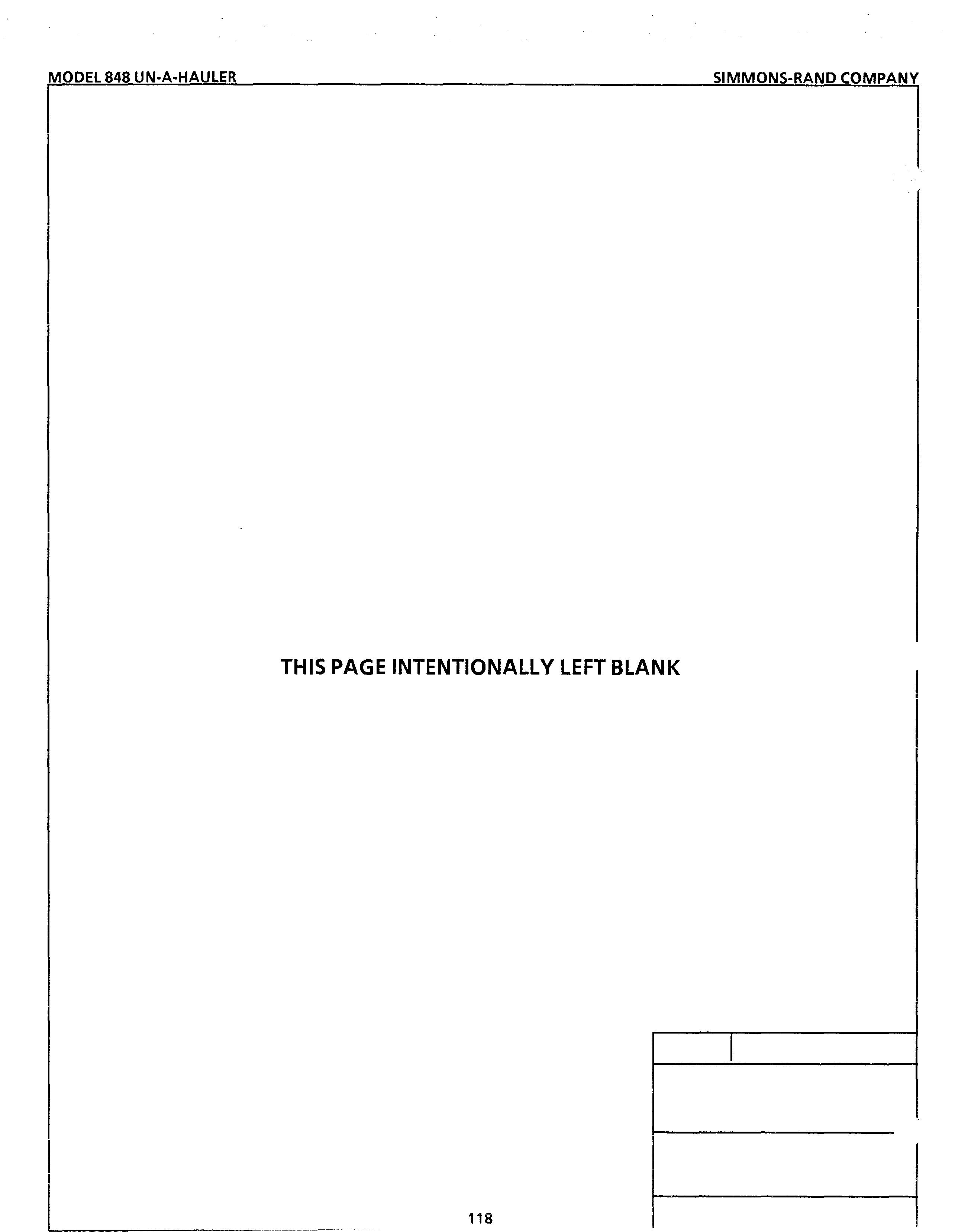

THIS PAGE INTENTIONALLY LEFT BLANK
