FALSE BOTTOM CYLINDER INSTALL

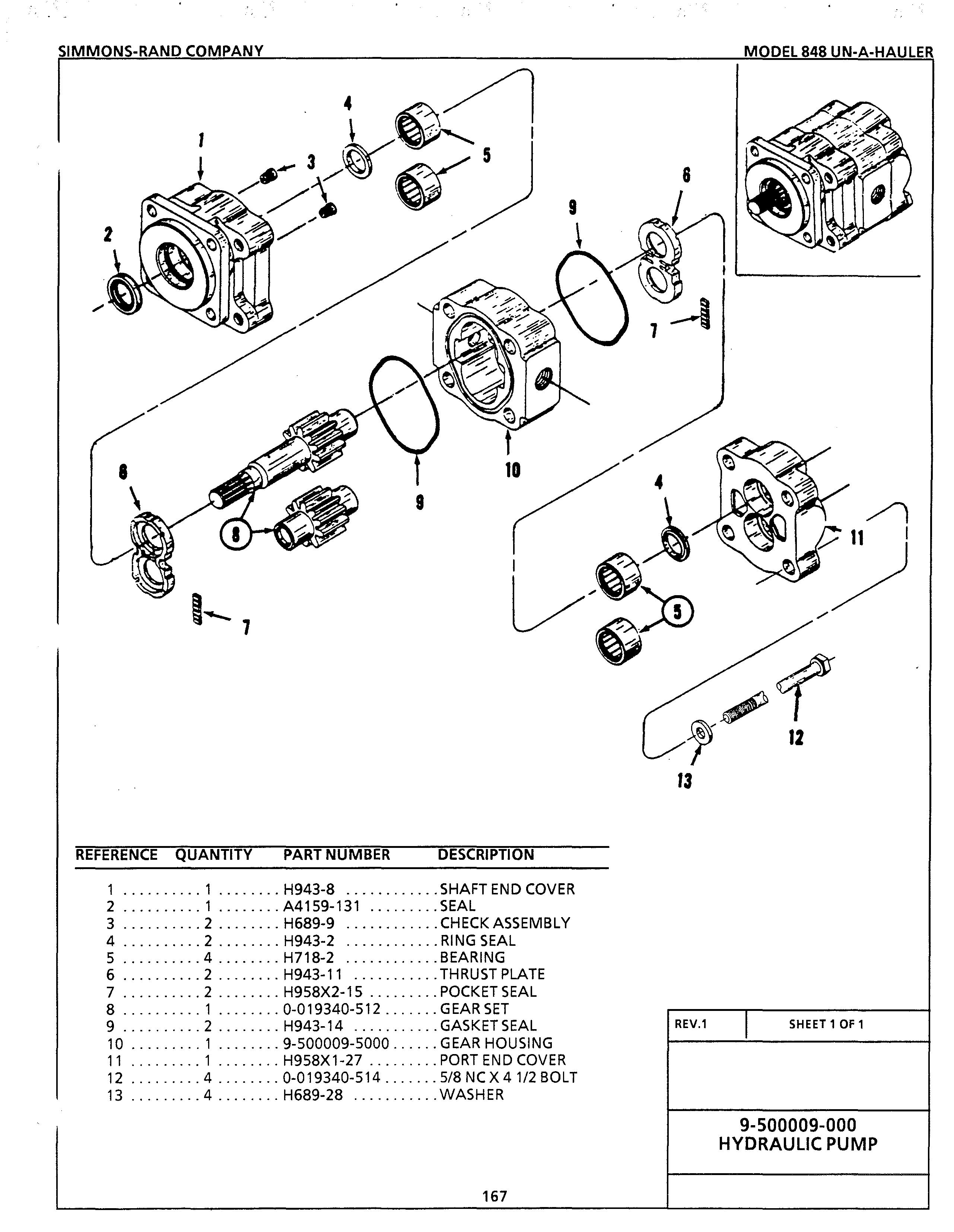

REFERENCE QUANTITY PART NUMBER DESCRIPTION

1 .......... 1 ........ H943-8 ............ SHAFT END COVER 2 .......... 1 ........ A4159-131 ......... SEAL 3 .......... 2 ........ H689-9 ............ CHECK ASSEMBLY 4 .......... 2 ........ H943-2 ............ RING SEAL 5 .......... 4 ........ H718-2 ............ BEARING 6 .......... 2 ........ H943-11 ........... THRUST PLATE 7 .......... 2 ........ H958X2-15 ......... POCKET SEAL 8 .......... 1 ........ 0-019340-512 ....... GEAR SET 9 .......... 2 ........ H943-14 ........... GASKET SEAL 10 ......... 1 ........ 9-500009-5000 ...... GEAR HOUSING 11 ......... 1 ........ H958X1-27 ......... PORT END COVER 12 ......... 4 ........ 0-019340-514 ....... 5/8NCX41/2BOLT 13 ......... 4 ........ H689-28 ........... WASHER

13

REV.1 SHEET1 OF1

9-500009-000

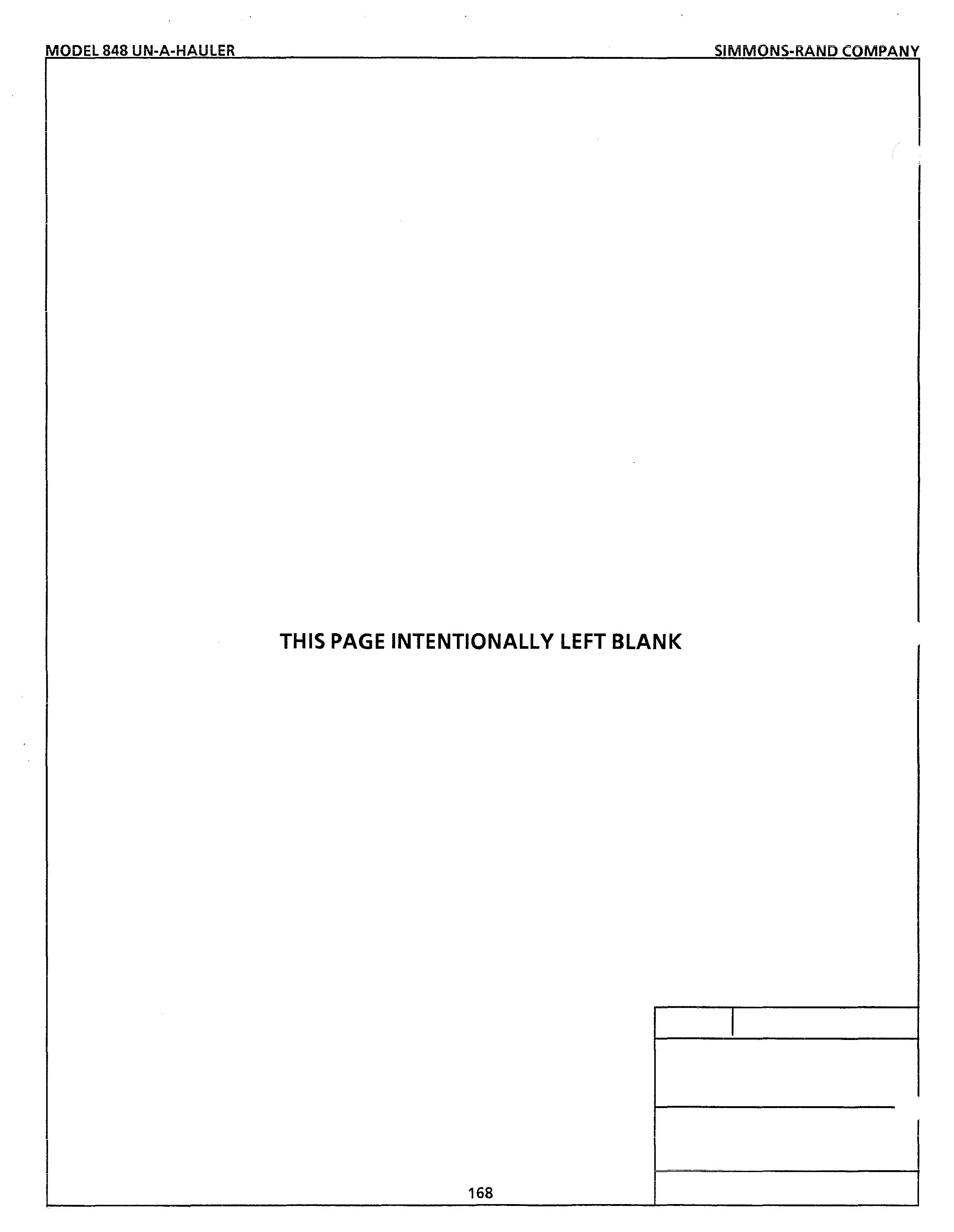

THIS PAGE INTENTIONALLY LEFT BLANK
