Use the clamp (13) and the plate (20) secure the rigid pipe (15) the pipe (10) . Secure the clamp with the bolt (31) .

29. Start the engine and operate the controls the backhoe attachment bleed air from the hydraulic system and check if the hammer system operates correctly . 30. Adjusting the oil delivery the hammer system

Place the accelerator knob / lever in full speed position

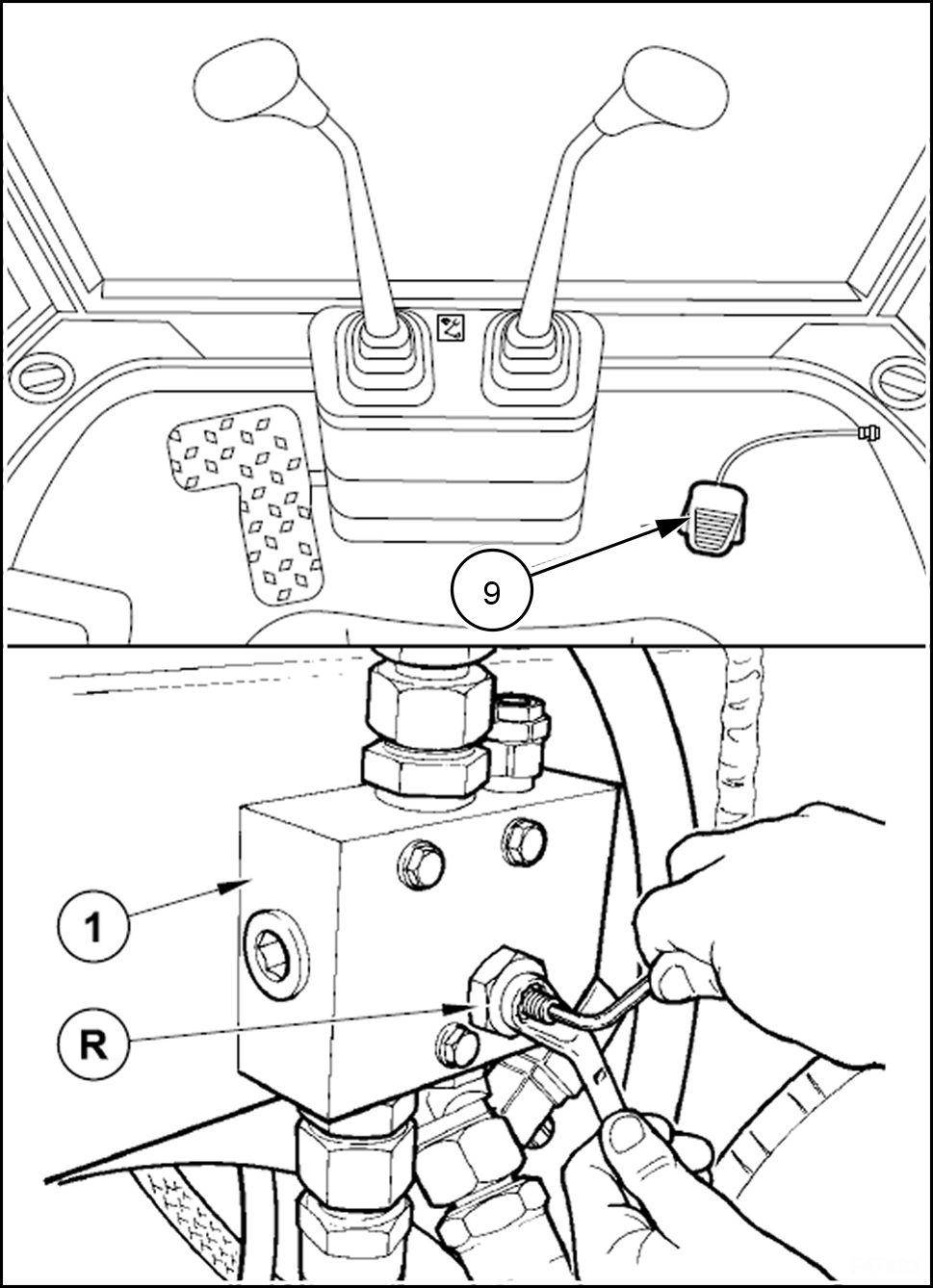

Press down the hammer control pedal (9) operate the hammer

Release the hammer control pedal (9) stop the hammer ’s operation

According the requirements the recommended delivery , adjust the delivery regulator (R) the hammer control valve (1) NOTE: make sure abide the recommended delivery and always obey the Manufacturer ’s times and indications. For some auxiliary attachments, excessive delivery may cause damage. NOTE: not operate the hammer a telescopic arm unless the dipper is completely retracted and blocked in transport position.
