REPLACING A BACKHOE BUCKET

Removal REPLACING A BACKHOE BUCKET

1. Place the bucket flat on flat, horizontal ground. Operate the attachment controls so that the dipper/bucket linkage pin is not gripped by the weight of the dipper. 2. Stop the engine and remove the starter switch key.

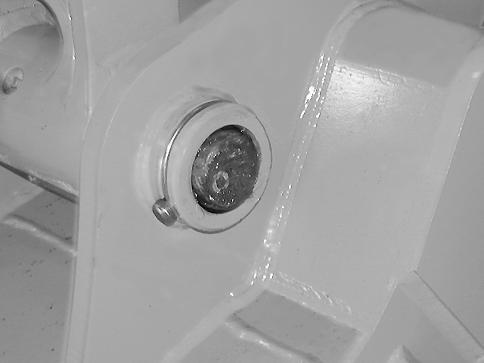

CD00E096 3. Remove the retaining rings and pins.

CD00E099 5. Start the engine, disengage the attachment from the bucket and retain the linkage seals for re-use.

Installation

1. Make sure the bucket is in a stable position.

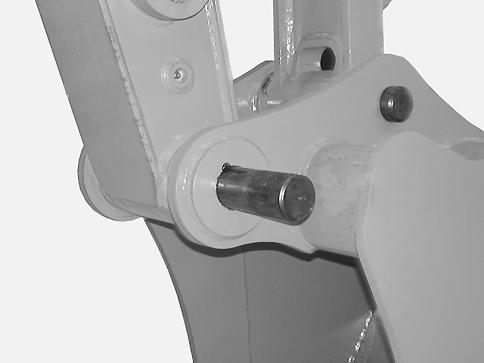

4. Remove the bucket pins.

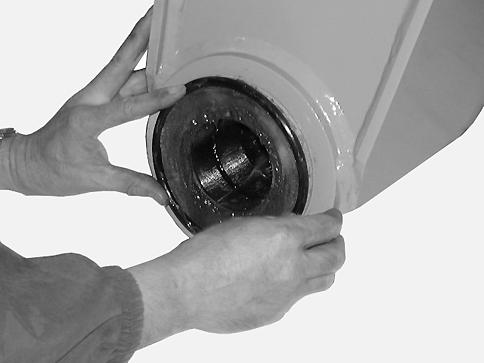

CD00E097 CD00E099 2. Install the linkage seals on the dipper bushing shoulders. Change them if necessary.

Replacing a backhoe bucket (continued)

3. Start the engine. Extend the bucket cylinder rod to bring it into its housing. Stop the engine and remove the starter switch key.

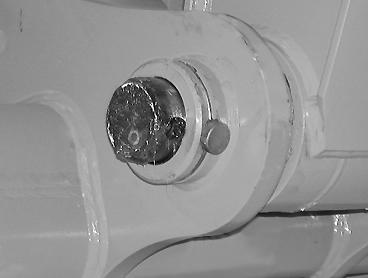

CD00E100 4. Install the dipper/bucket linkage pin and then install the retaining pin and ring. 5. Start the engine. Stop the engine and remove the starter switch key.

CD00E096 6. Install the connecting rod/bucket linkage pin and then install the retaining pin and ring. 7. Push the seals back into their housings. 8. Adjust the dipper/bucket shimming. See "Shimming the backhoe bucket". 9. Grease the linkage pins.
