AIR FILTER

Inspection

Be sure to carry out regular checks on the air filter, intake manifold, seals and hoses. At the same time, check the intake manifold screws and hose clamps for tightness. The hoses should be replaced before they are worn.

Air filter restriction indicator

Service specification

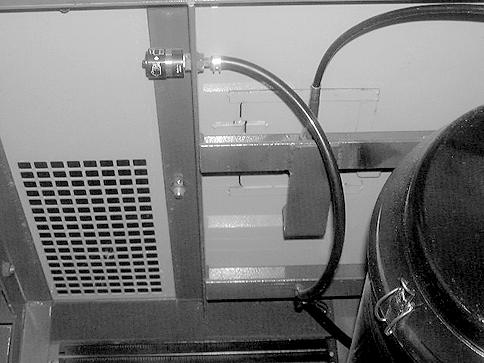

CD01K085 Located above to the air filter, this indicator shows the state of the air filter elements. When the central zone of the indicator becomes red then the elements must be serviced, irrespective of the next scheduled service interval. Once the elements have been serviced, press the button on top of the indicator to start a new indication cycle.

Inspect and clean the primary element.........................................Every 250 hours or when central zone of the indicator turns red Replace the primary element......................................................Every 1000 hours or after cleaning six times Replace the secondary element.................................................Every 2000 hours IMPORTANT: The primary element can be cleaned. The secondary element can not be cleaned and must be replaced. IMPORTANT: Observe the air filter service intervals shown above. Clean filters mean longer engine life.

Removing the elements

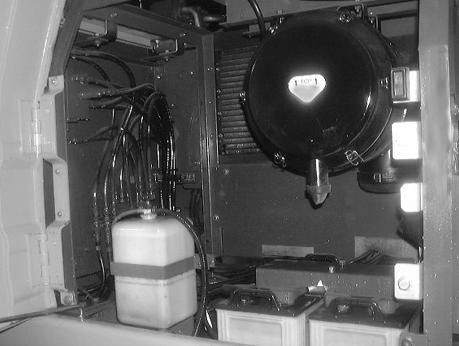

CD01N017 1. Release the fasteners and remove the cover.

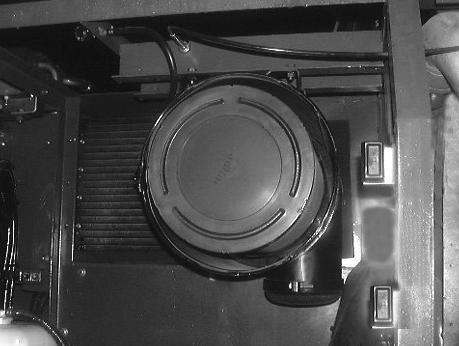

CD02A017 2. Remove the primary element. IMPORTANT: The secondary element must be replaced, not cleaned.

Cleaning the primary element

IMPORTANT: Always protect your face before using compressed air.

PE08311

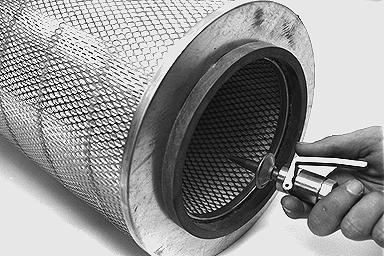

If the primary element is dry: Blow compressed air from the inside towards the outside at very low pressure. The compressed air nozzle should be held at least 3 cm from the inside wall of the element. Cleaning is completed once no more dust comes out of the primary element.

CD02A018 3. Remove the secondary element if it needs replacing.

Air filter (continued)

IMPORTANT: Compressed air pressure should not exceed 7bar. NOTE: Do not use compressed air if there is oil or soot on the primary element.

Inspecting the primary element

PDE0088

If the primary element is oily: Clean it in water with a suitable detergent (consult your CASE Dealer). Instructions for using the detergent are printed on the packaging. IMPORTANT: Allow the primary element to dry completely before installing. It is advisable to keep a spare, clean primary element ready for installation while the other primary element is drying.

PDE0378 Check the primary element for damage by placing an inspection lamp inside the element. IMPORTANT: Replace the primary element if light can be seen through a hole, however small.

Installing the elements

CD02A018 1. Install the secondary element.

CD02A017

2. Install the primary element.

CD01K085 5. Press the red button on the indicator. IMPORTANT: If exhaust smoke is abnormal after cleaning, the air filter primary element must be replaced.

1

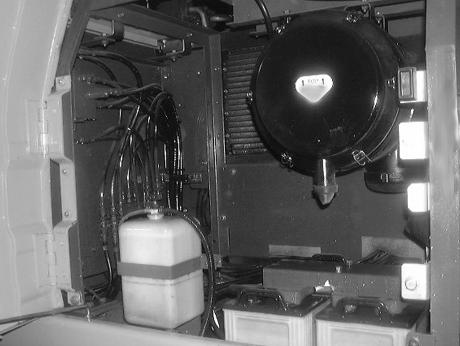

CD01N017 3. Install the cover (with the word "TOP" at the top) and close the fasteners. 4. Check that the dust ejector (1) under the filter is working correctly.
