ANTI-THEFT DEVICE

To prevent the machine from being stolen it is possible to use the anti-theft system, which makes it necessary for a special code to be entered before the machine can be operated. Your CASE Dealer can do this for you. Once this operation has been performed, a special access code has to be entered each time you start the engine. IMPORTANT: Once the code has been entered, do not forget it, as it can not be changed without consulting your CASE Dealer.

Entering the code

1. Place the starter switch key in the "ON" position.

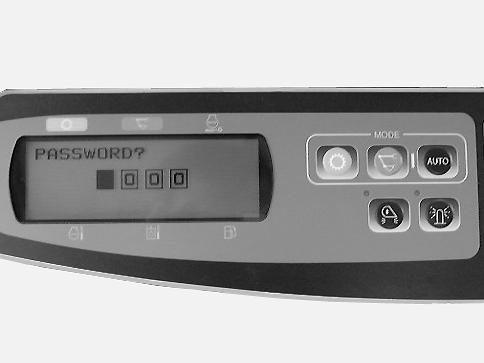

CD00E077 2. The message "Password" and four boxes will appear on the display screen. 2 3

1

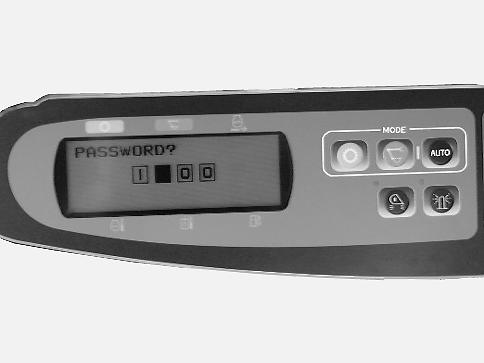

CD00E078 3. To register the code (example: 1234), press the number of times corresponding to the first figure (example: 1time) on key (1) then press key (2) in order to pass on to the second figure. Press the number of times corresponding to the second figure (example: 2 times) on key (1) then press key (2) to pass on the third figure. Repeat the procedure for the third and fourth digits. 4. Once all four digits have been entered, press button (3) for the code to be entered in the system. The audible alarm device will sound. 5. To finish entering the code, place the starter switch key in "OFF" position. IMPORTANT: Remember to keep careful note of the code number, because if you forget it, it will not be possible to enter a new one without consulting your CASE Dealer.

Anti-theft device (continued) Using the anti-theft device

The anti-theft device has to be activated when you are shutting down the engine. Turn the starter switch from "ON" to "OFF", "ON" to "OFF" for about 2 seconds at a time until the audible alarm device sounds. The anti-theft device is now operational and before being able start the engine you will have to enter the access code. You are not obliged to activate the antitheft device. In this case you only have to place the starter switch key in the "OFF" position when switching off the engine. Using this configuration, it will not be necessary to enter the code when starting the engine.

Entering the access code

If the anti-theft device was activated the last time the engine was shut down, then it will be necessary to enter the access code before being able start it again. 1. Place the starter switch key in the "ON" position.

2 3

1

CD00E077 2. The message "Password" and four boxes will appear on the display screen. 3. To enter your code (example: 1234), press the number of times corresponding to the first figure (example: 1 time) on key (1) then press key (2) so as to pass on to the second figure. Press the number of times corresponding to the second figure (example: 2 times) on key (1) then press key (2) to pass on to the third figure. Repeat the procedure for the third and fourth digits.

4. Once all four digits have been entered, press button (3). The audible alarm device will sound. If the access code has been entered correctly, the message "Password" will disappear from the display screen and it will be possible to start the engine.

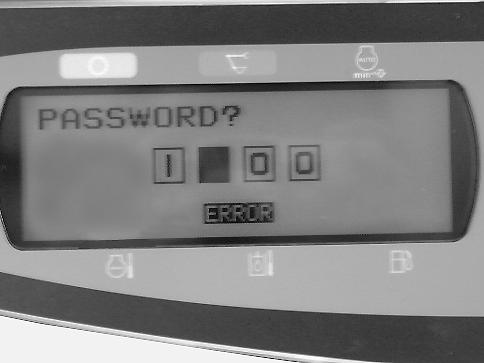

CD00E079 If the code entered was incorrect or different from that recorded in the machine, the message "ERROR" will appear, the audible alarm device will sound and it will be necessary to start all over again. Place the starter switch key in the "OFF" position and repeat Steps 1 to 4. NOTE: If the anti-theft device was activated the last time the engine was turned off, it will still be possible to start the machine without the access code, or with the wrong code, but the engine will run at idle speed, it will be impossible to accelerate and the upperstructure rotation function will be cancelled.
