WINDSHIELD

Operator’s seat (continued)

IMPORTANT: Inspect the seat belt. Make sure that it is not damaged, that the mounting screws are correctly tightened and replace any defective parts. The seat belt must be kept clean. Use only soap and water to clean the belt, do not use bleach or dies.

WARNING: Make sure you follow the instructions below properly. If the windshield is not handled correctly it could slip and injure your fingers or hand.

Opening

2

1

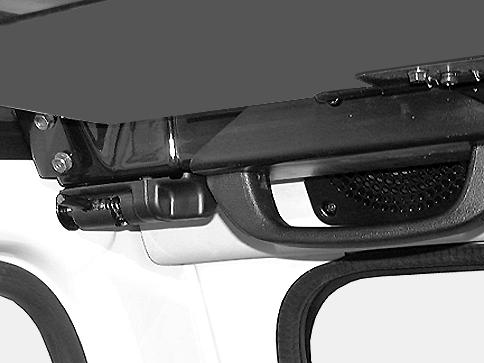

CD00E023 1. Fold back the sunshield (1) against the windshield and pull the lever (2). 4

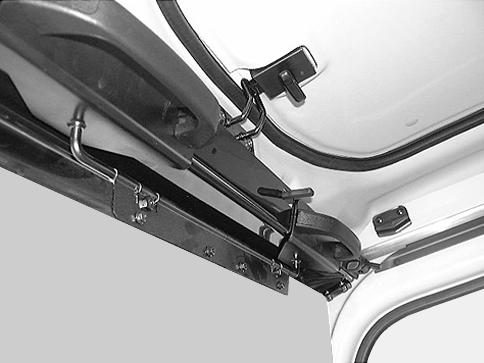

CD00E019 3. Engage the right-hand latch (4) in the cab upright.

3

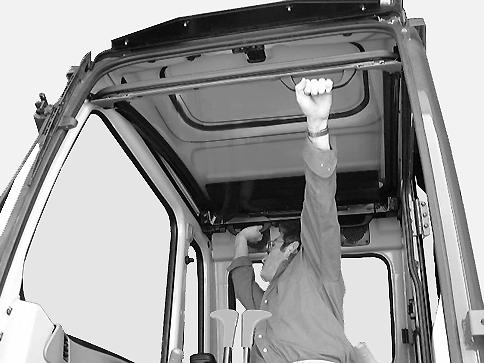

CD00E047 2. Hold the lower and upper handles (3) and carefully raise the windshield. Push to the rear until it engages.
