OPTIONAL TOOL SUPPLY VALVES

Next Article
STORAGE .............................................................................................. 209

STORAGE .............................................................................................. 209

OPTIONAL TOOL SUPPLY VALVES (optional)

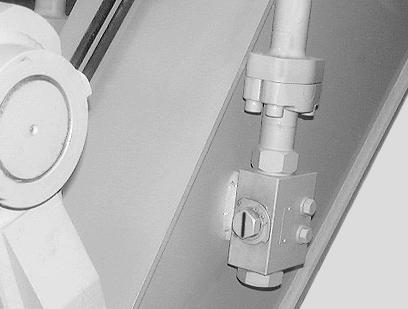

CD01K042 Located on the end of the dipper, these two valves are used to ensure oil supply to optional tools, for example, hydraulic breakers, etc... These valves have two positions, open/closed.
