is not applicable if the position overlapping with a cab the side view (mark * in the figure) is lowered significantly compared with the standard model (standard arm), within the maximum digging radius with the bucket tip the surface the ground.

Moreover , it cannot said that the - ton model, close the limit weight, with a cab that can bear - tons and the - ton model with the same cab are the same in the degree influence.

Prohibitions

• Such modification reduces the strength the platform where the ROPS cab is installed. (Such action modification reduces the function the retaining anchor in the left rear the cab) • Such modification fects the ROPS strength the ROPS cab.

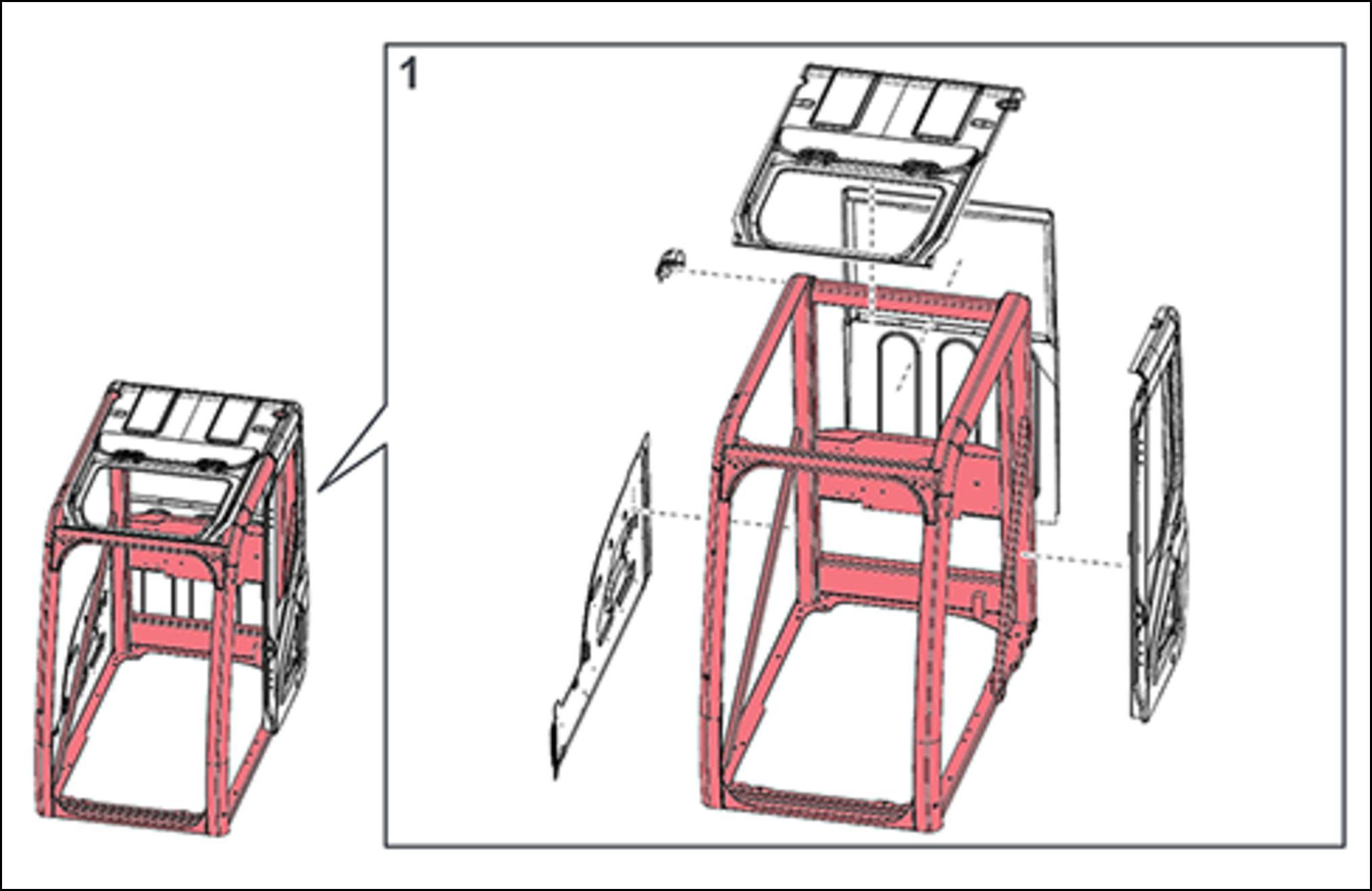

Modification prohibited (Red components) All changes (grinding, welding, drilling, removal, etc.) are prohibited.

Conditional modification permitted (Gray components) Removal components is prohibited. W elding and drilling bars (limited ( 0.79 ) less in diameter) are allowed.

Cab (CX130D / CX160D / CX180D)

SMPH15CEX5805F A 2
