TRAVEL REDUCTION GEAR

SERVICE SPECIFICATIONS

Oil level check...............................................................................Every 250 hours Oil change...................................................................................Every 1000 hours (after the first 250 hours of operation) Oil capacity (per reduction gear) CX130 and CX160......................3 litres (0.8 gal) Oil type..........................................................................See “Fluids and lubricants”

LEVEL

STEP 1

Park the machine on flat, horizontal ground.

STEP 2 STEP 4

2

1

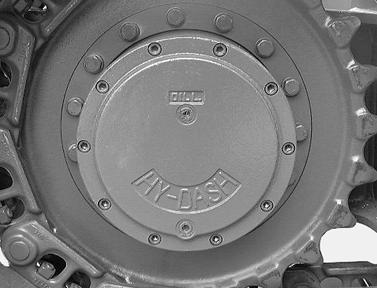

CD00E166 Move the machine so that plug (1) is in the lowest possible position.

STEP 3

Stop the engine and remove the starter switch key. 2

CD00E166 Remove the plug (2) and check the oil level. The level must come up to the lower edge of the orifice. If necessary, remove plug (3) and add oil through orifice (3) until the level comes up to the bottom edge of orifice (2).

STEP 5

Install plugs (2) and (3).

STEP 6

Repeat Steps 2 to 5 for the other travel reduction gear.

STEP 7

Travel slowly with the machine and make sure there are no leaks.
