LEVEL IN RESERVOIR

STEP 1

CS98N547 Place the machine on flat, level ground and place the attachment in the position shown. Stop the engine and remove the starter switch key.

STEP 2 FILLING THE RESERVOIR

Release all pressure in the hydraulic reservoir. See “Releasing pressure in the hydraulic system” .

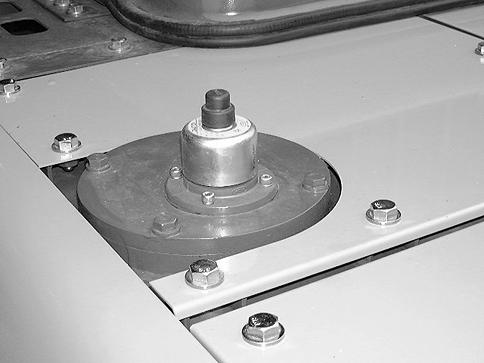

CD00E112 Clean the cover plate and the area around the plate. Remove the cover plate and add hydraulic fluid to the reservoir as required. Replace the cover plate seal if required and install the cover plate.

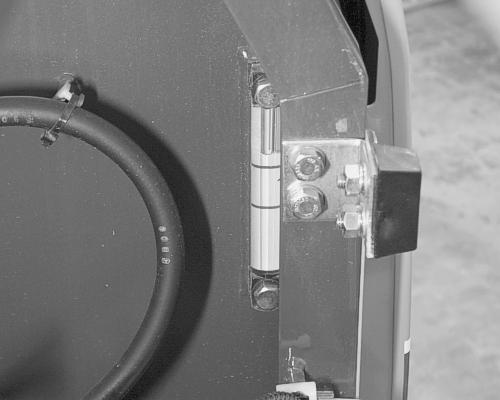

BD00M221 The oil should be in the middle of the indicator. Add more oil if necessary. See “Filling the reservoir” .
