TRAVEL CONTROL LEVERS AND PEDALS

OPTIONAL PEDAL

CD00E012 For machine travel, see “Machine travel” in the “Operating Instructions” Section. NOTE: Travel speed either forwards or in reverse depends on the position of the travel speed selector. See “Systems display panel” (item 1). NOTE: The movements of the machine are shown in the “Control functions” decal. See “Decals” in the “Safety/ Decals/Hand signal” Section.

CD00E012 This pedal is used for optional tools such as hydraulic breakers, etc. See “Auxiliary hydraulic circuits” in the “Operating Instructions” Section. IMPORTANT: Ask your CASE Dealer for advice on optional tools.

FOOTREST

CD00E012

CAB LIGHT CIGARETTE LIGHTER

CD00E013 The light is located on the right-hand cab upright and is controlled by a switch set in the lamp base.

COAT HANGER HOOK

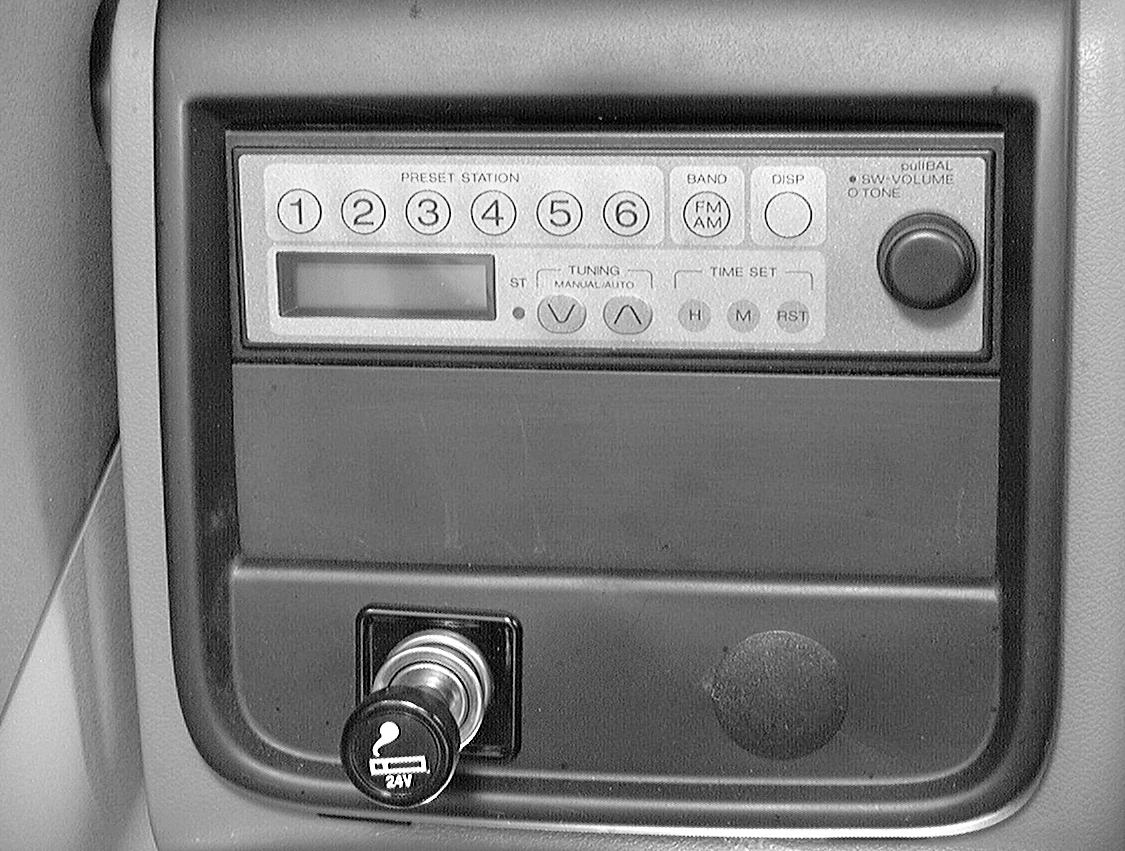

RD00K032 The cigarette lighter (24 volt) is to the right at the rear of the cab. IMPORTANT: Do not keep the cigarette lighter pushed in, to avoid damage.

FUSE BOX

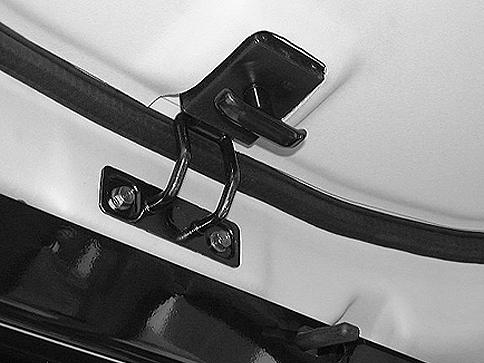

CD00E013 This hook is on the right-hand cab upright.

CD00E059 To gain access to the fuses, open the hatch to the left behind the operator’s seat and then remove the fuse box cover. To replace a fuse, see “Fuses” in the “Electrical system” Section.

ROOF HATCH STORAGE TRAY

CD00E015 To open the roof hatch, turn the handle and push the hatch upwards. To close the roof hatch, pull the handle. IMPORTANT: Since roof hatch closing is assisted by two gas struts, simply follow through the closing movement without pulling or trying to hold it back.

CAB DOOR SLIDING WINDOWS

BD00J048

CD00E032

CD00E016 When the locks are released, the windows can be opened and closed to the left/right as required.

SUN SHIELD

CD00E018

The sun shield is fixed to the windshield and can easily be positioned as required.

STORAGE COMPARTMENT

CD00E017 Located behind the operator’s seat, this compartment is used, among other things, for storing the machine’s technical documentation and conformity certificates.
