GREASE FITTINGS

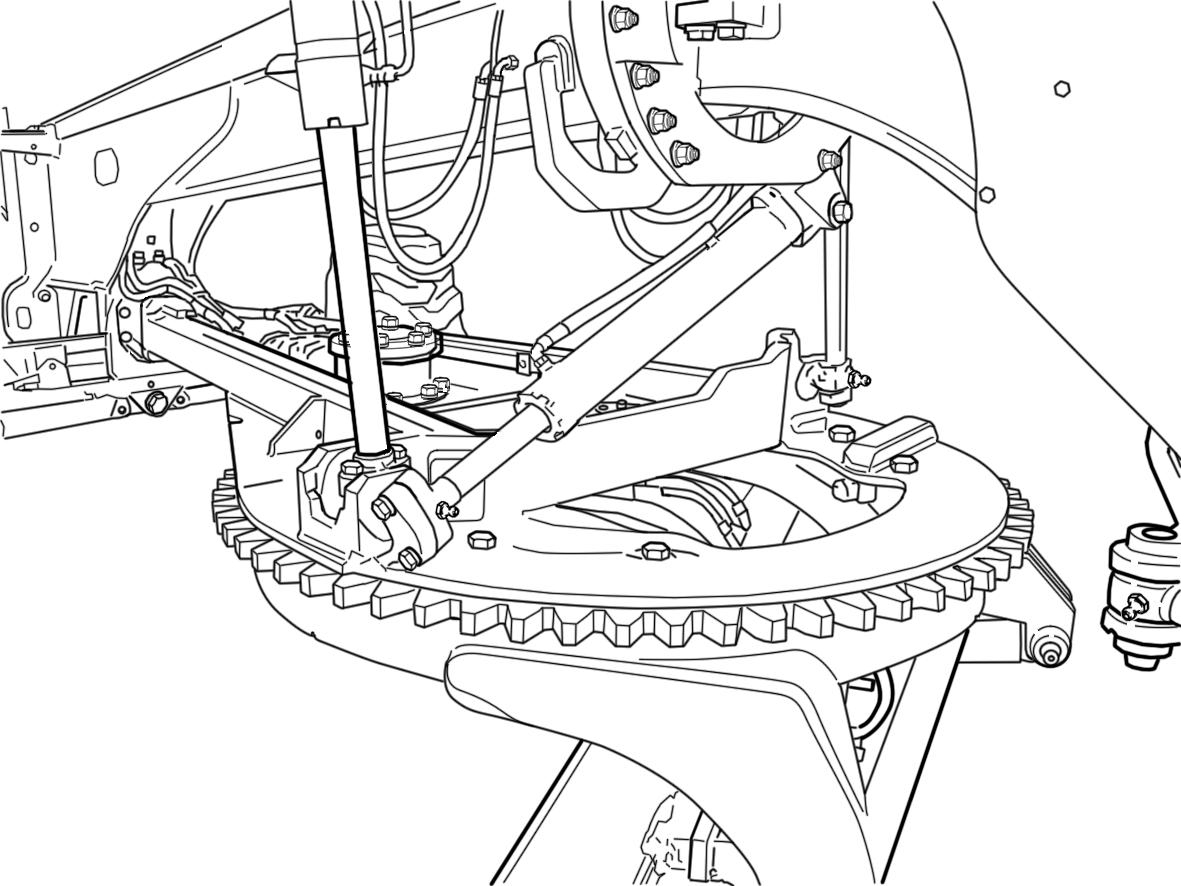

each 100 hours services Litium based Grease with Molydissulfide (NLGI-2)

Moldboard Lift Cylinders balls

There are 2 lube points. Lubricate with 6 to 12 shots each.

LIFT CYLINDERS BALL JOINT

Drawbar ball and socket

There is 1 lube point. Lubricate with 6 to 14 shots.

DRAWBAR BALL AND SOCKET

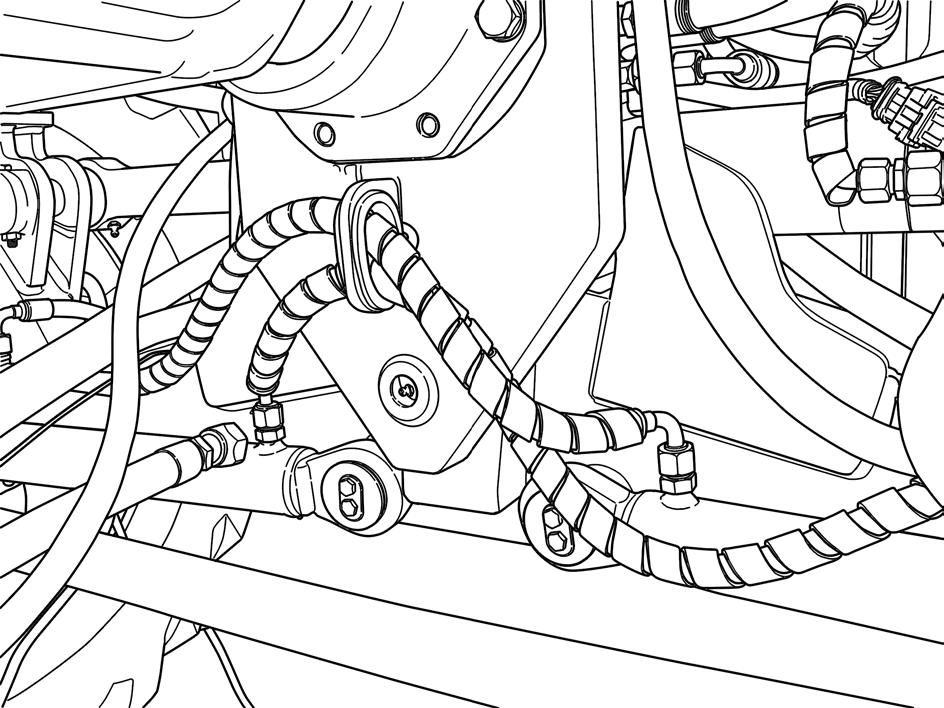

Articulation, Hydraulic Cylinders and Pivot Joints

There are 4 lube points, 2 on each side. Lube with 6 to 10 shots on cylinders ends. Lube, with 6 to 14 shots on pivot bearings.

3

2

1. 2. 3. ARTICULATION CYLINDERS JOINTS LOWER ARTICULATION JOINT UPPER ARTICULATION JOINT

1

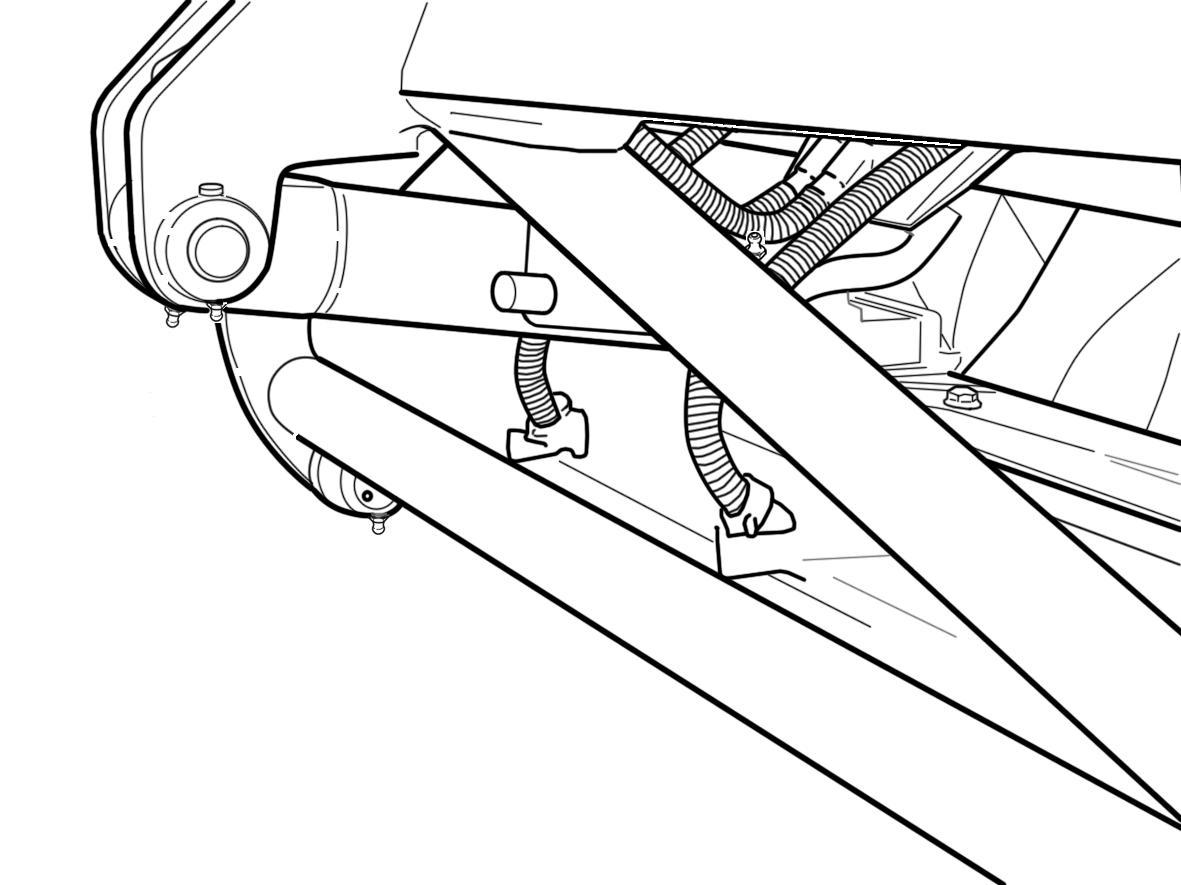

Moldboard Tilt Cylinders balls

There are 2 lube points. Lubricate with 6 to 12 shots each.

TILT CYLINDER BALL JOINT

Moldboard Tilt Cylinder Pivot

There are 2 lube points. Lubricate with 4 to 6 shots each.

TILT CYLINDER PIVOT

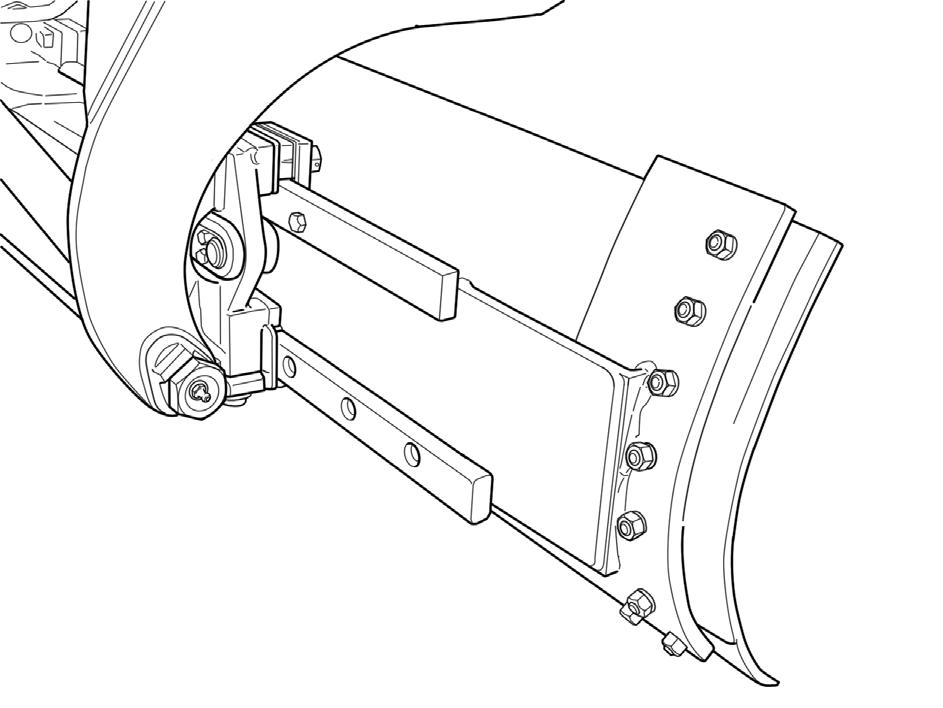

Moldboard Tilt Pivot

There are 2 lube points. Lubricate with 4 to 6 shots each.

TILT PIVOT

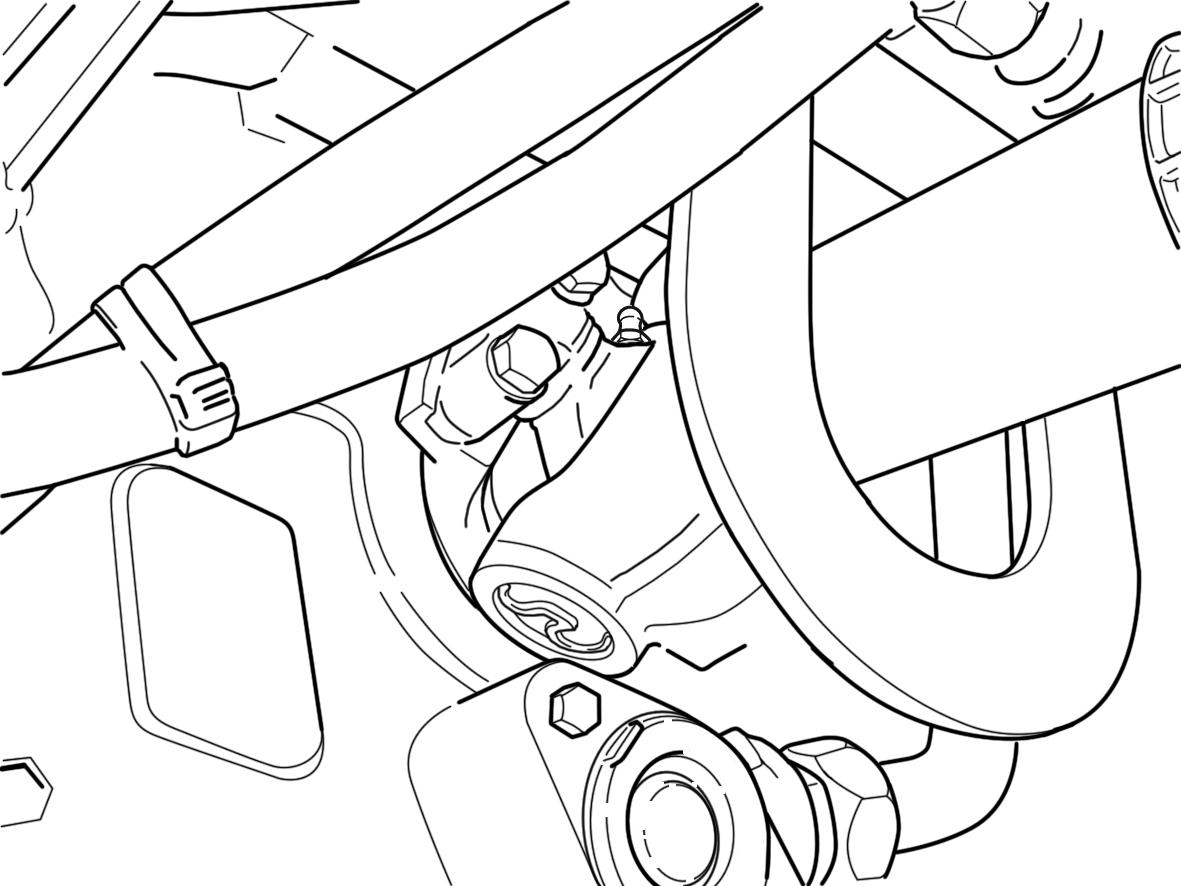

Lift Cylinder Pivots

There are 4 lube points for the pivots. Lubricate the pivots with 1 to 2 shots each.

LIFT CYLINDER PIVOTS

each 250 hours services Litium based Grease with Molydissulfide (NLGI-2)

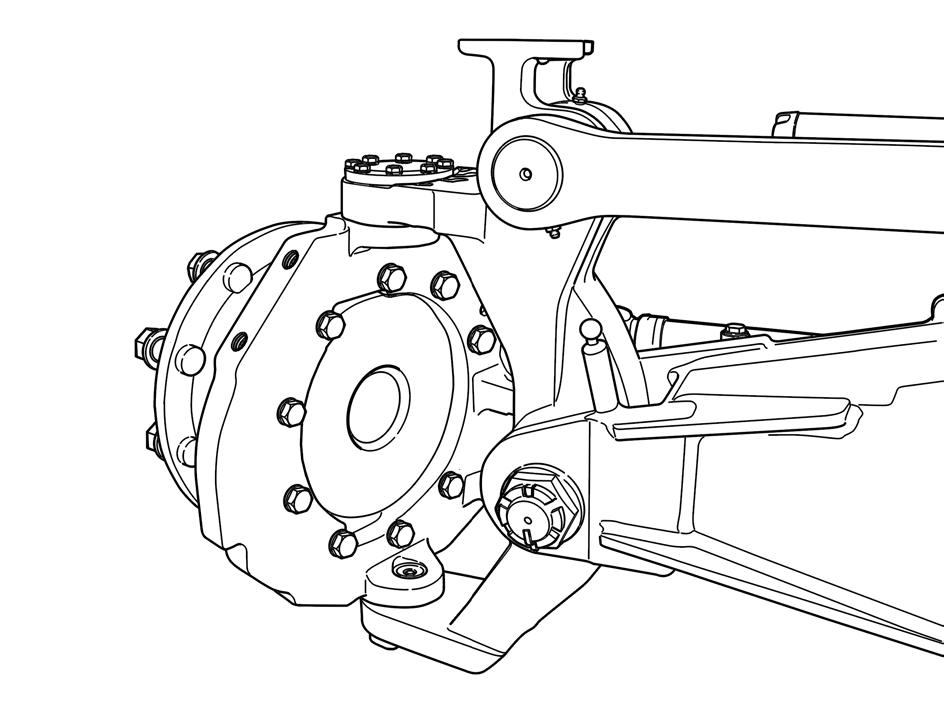

front Wheel Knuckle

There are 2 lube points. Lubricate with 4 to 6 shots on each side.

FRONT WHEEL KNUCKLE

Wheel Lean Link

There are 2 lube points. Lubricate with 4 to 6 shots on each side.

WHEEL LEAN LINK

steering Arm Pivot

There are 4 lube points. Lubricate with 4 to 6 shots on each side.

STEERING ARM PIVOT

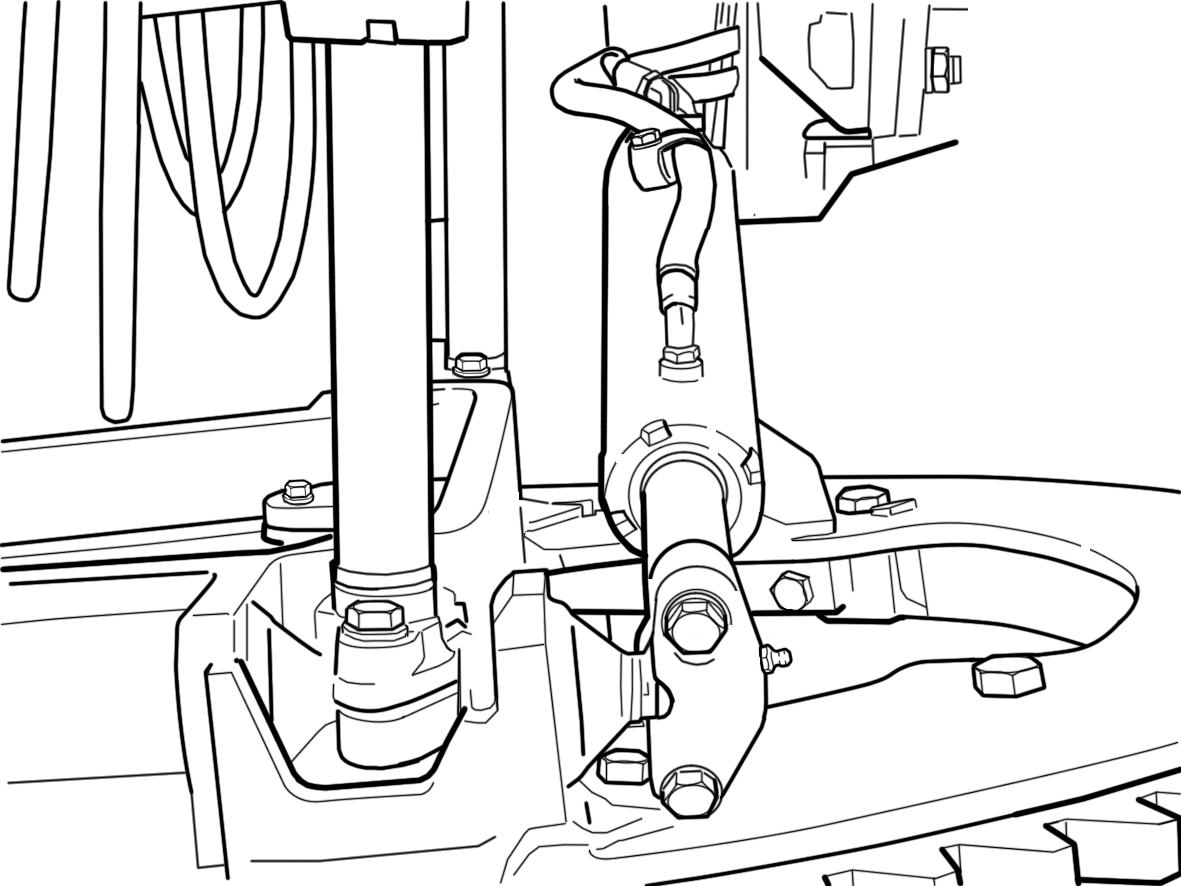

front Wheel Lean Cylinder

There are 2 lube points. Lubricate with 4 to 6 shots on each side.

FRONT WHEEL LEAN CYLINDER

front Axle spindle Pivot

There are 2 lube points. Lubricate with 6 to 12 shots each.

FRONT AXLE SPINDLE PIVOT

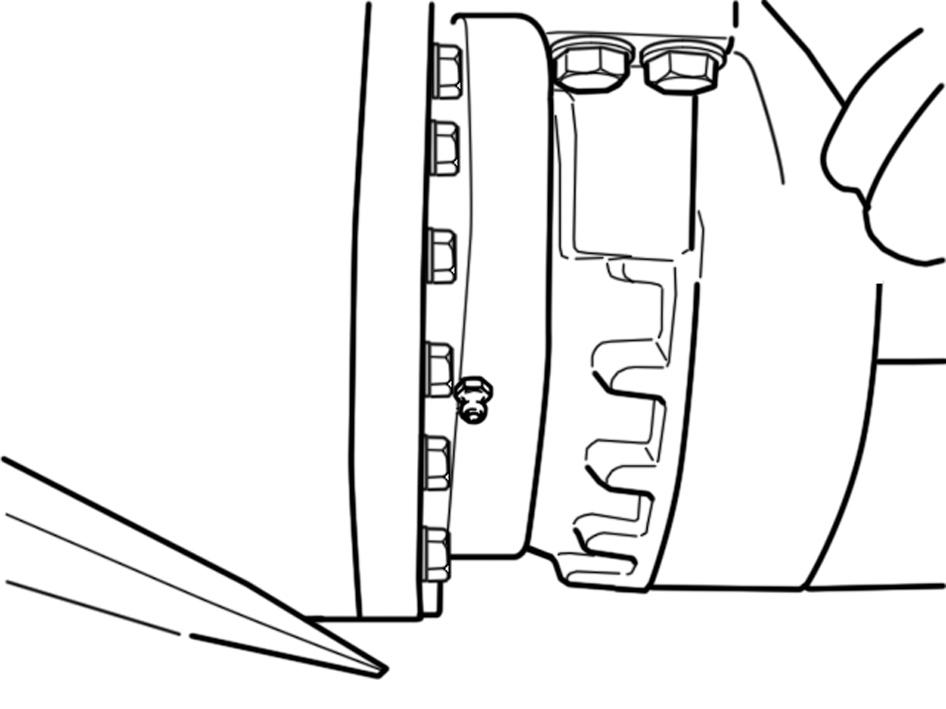

Tandem swing bearing

There are 4 lube points. Lubricate with 14 to 20 shots each.

TANDEM SWING BEARING

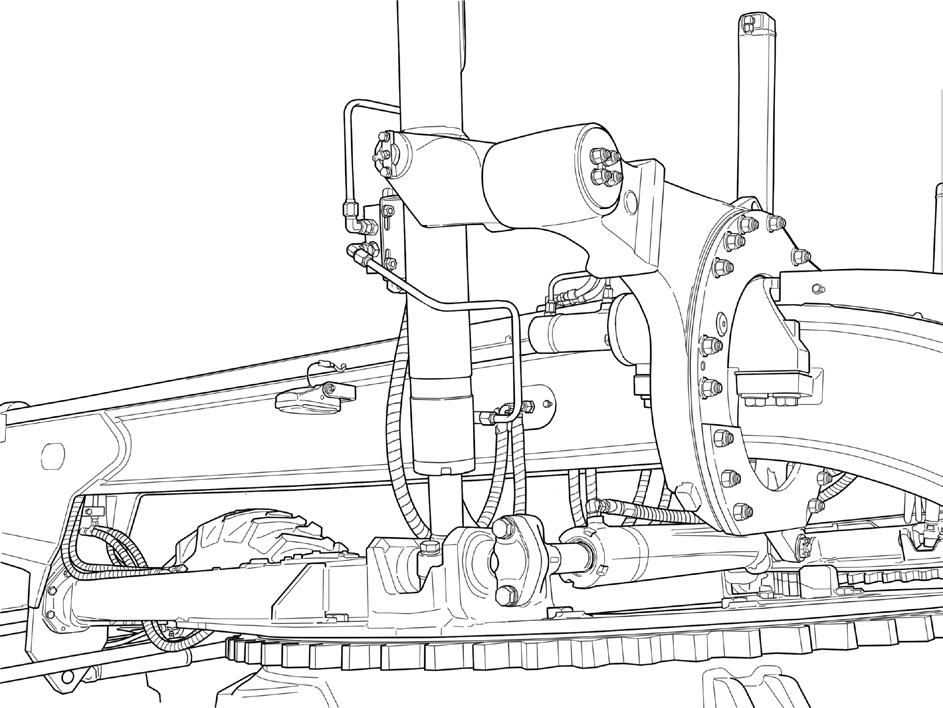

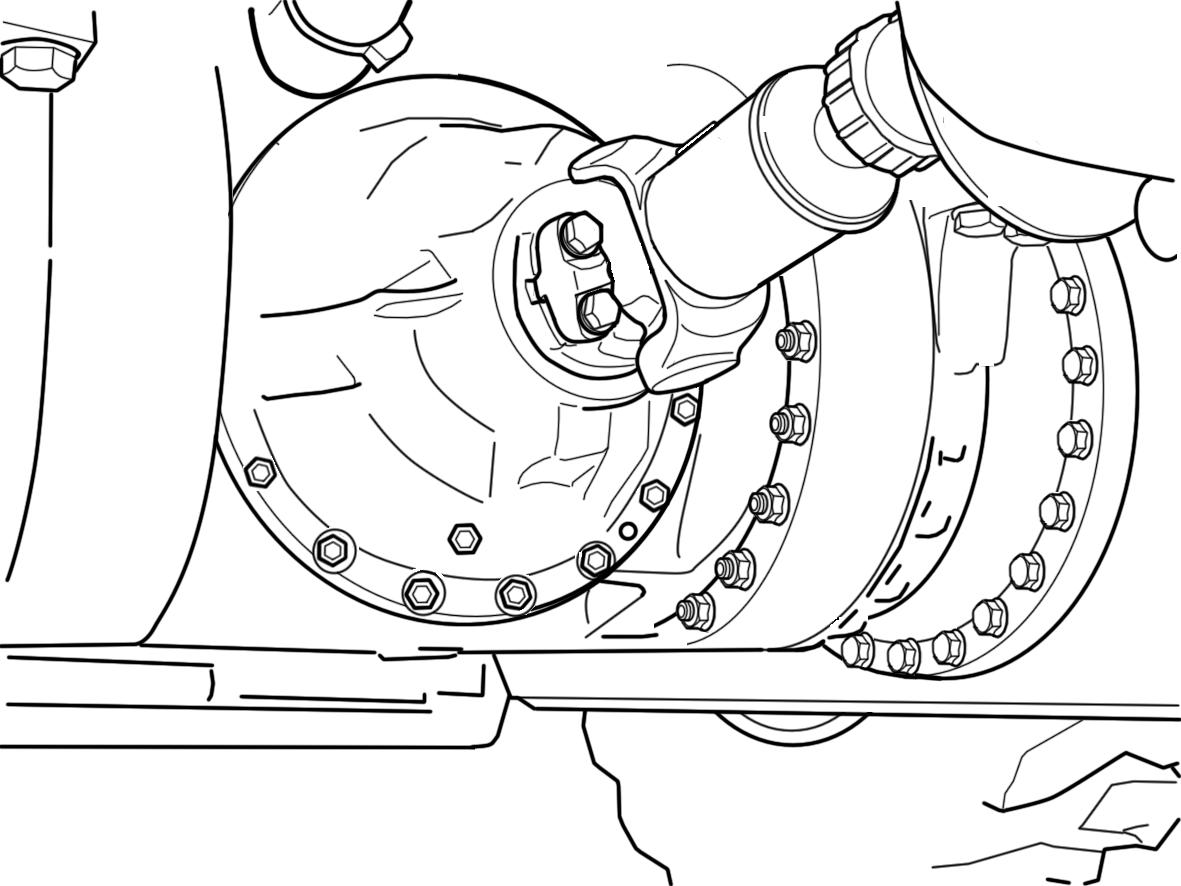

Universal Joint and Drive shaft

There are 3 lube points. Lubricate with 4 to 6 shots each.

1

1

Lift Cylinder bearings

There are 2 lube points for the bearings. Lubricate the bearings with 4 to 6 shots each.

LIFT CYLINDER BEARINGS

2

1. 2. UNIVERSAL JOINT DRIVE SHAFT

each 500 hours services Use Litium based Grease with Molydissulfide (NLGI-2)

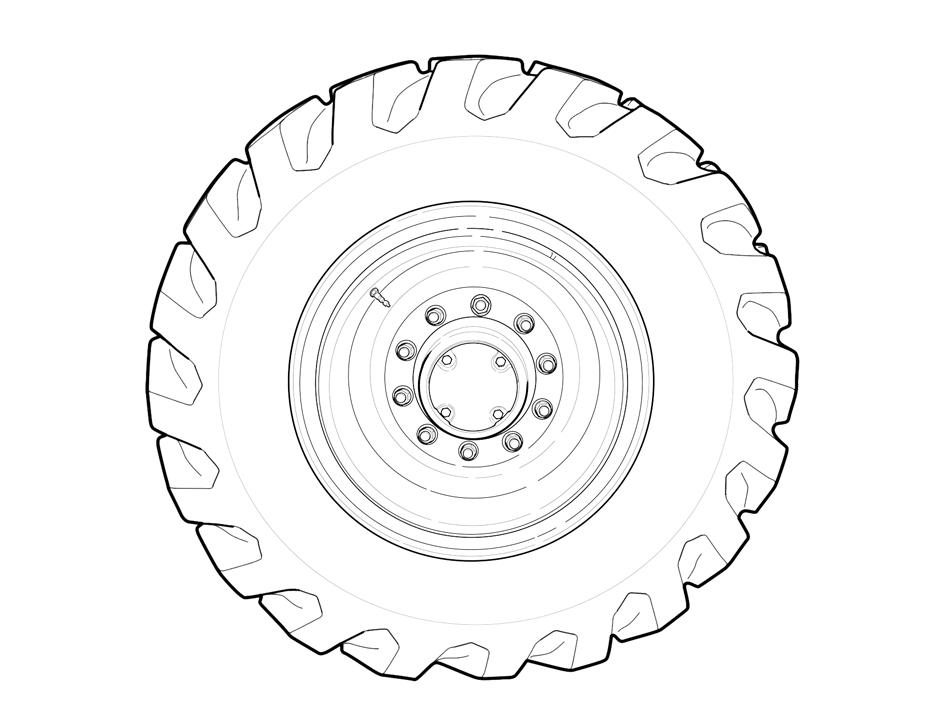

front Wheel bearings

Loosen fixing bolts and remove cover. Remove grease, clean bearing housing and fill it with 0.9 kg (each) of the specified grease. For more information see Fluids and Lubricants.

FRONT WHEELS BEARINGS

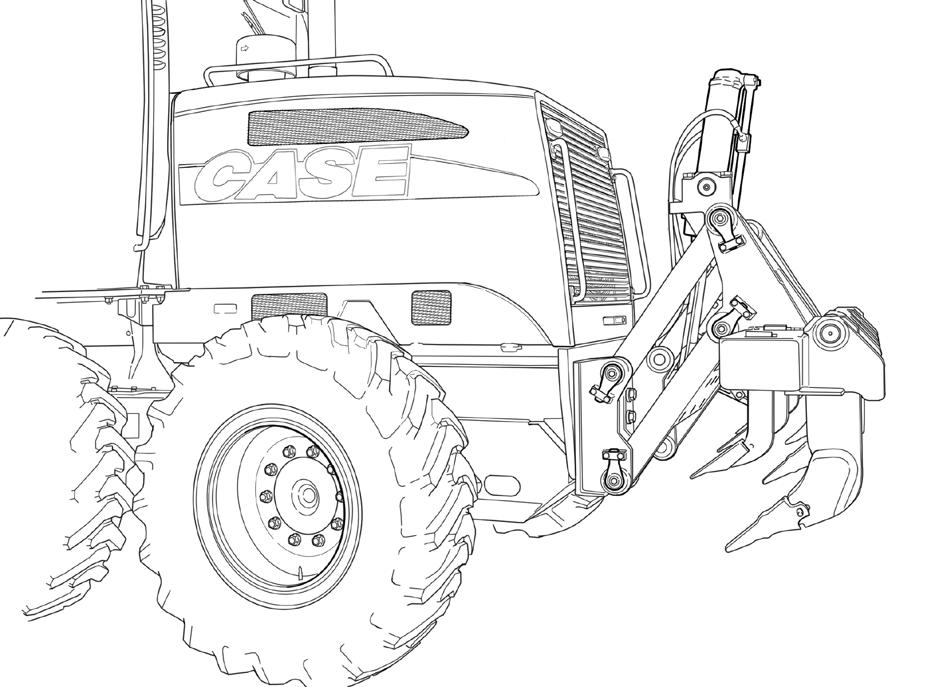

Rear Ripper Pivots and Cylinder

There are 8 lube points for ripper linkage and 2 for the cylinder. Lubricate wit 4 to 6 grease shots.

1 2

1 1

1. 2. RIPPER PIVOTS RIPPER CYLINDER

1
