Fan and drive ............................................................................... 10

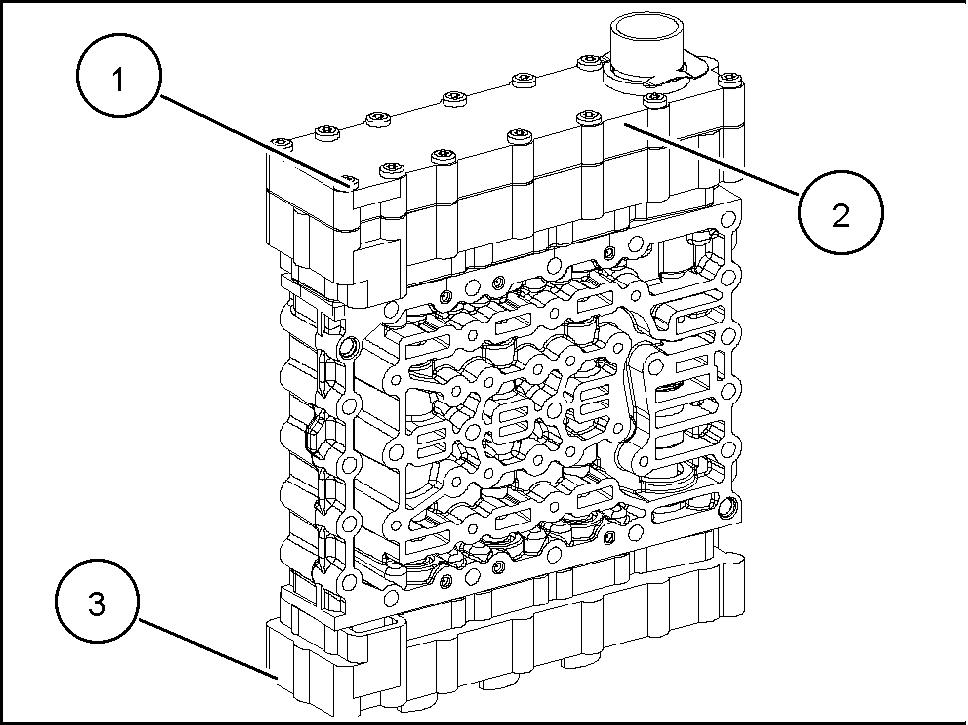

16. Remove T orx bolts (1) and cover (2) . Repeat the procedure the opposite end cover (3) .

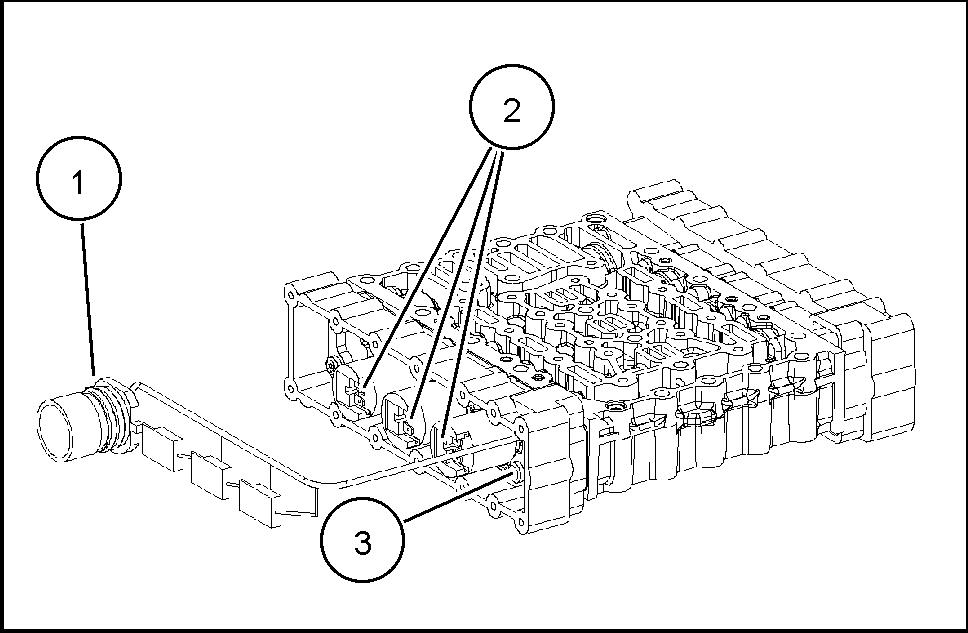

17. Remove wiring harness (1) . Remove cylindrical bolts (3) , securing plates and pressure controllers (2) .

- solenoid valve (5 - speed)

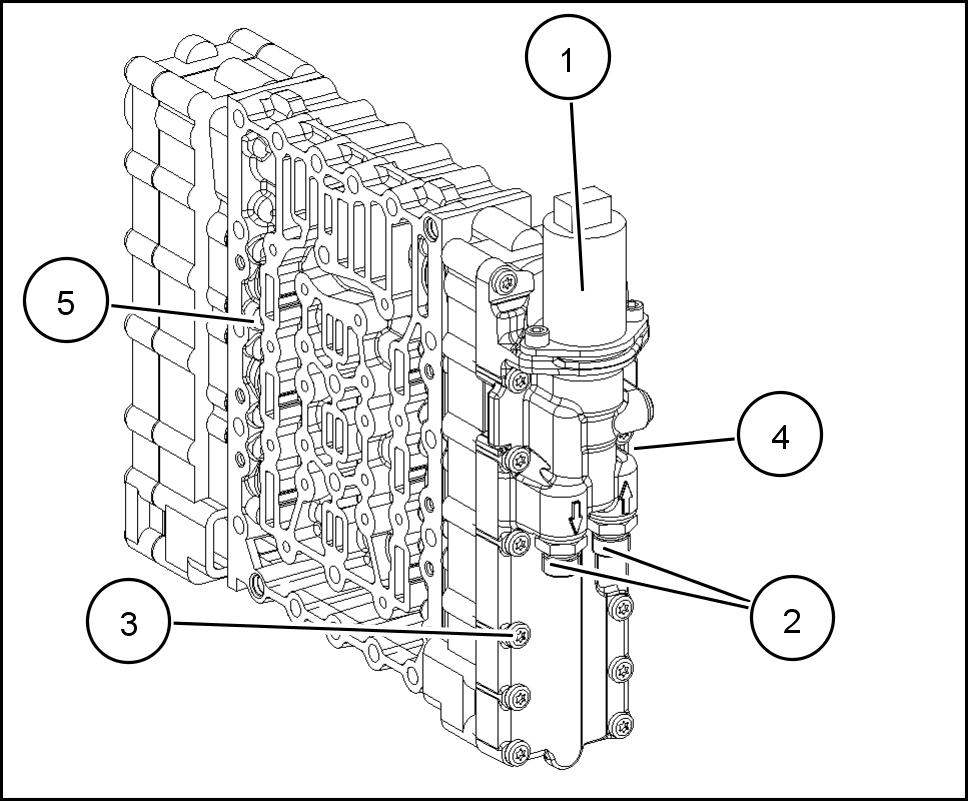

18. Mark installation position connecting housing (4) towards valve block (5) . 19. Remove cylinder bolts (1) and lock - clutch valve. 20. Remove bolt neck (2) and discard Orings. 21. Remove T orx bolts (3) , and the connecting housing.

RCPH1 1WHL203BBU 15

RCPH1 1WHL758BAU 16

RAPH1 1WEL0226AA 17
