Fan and drive ............................................................................... 10

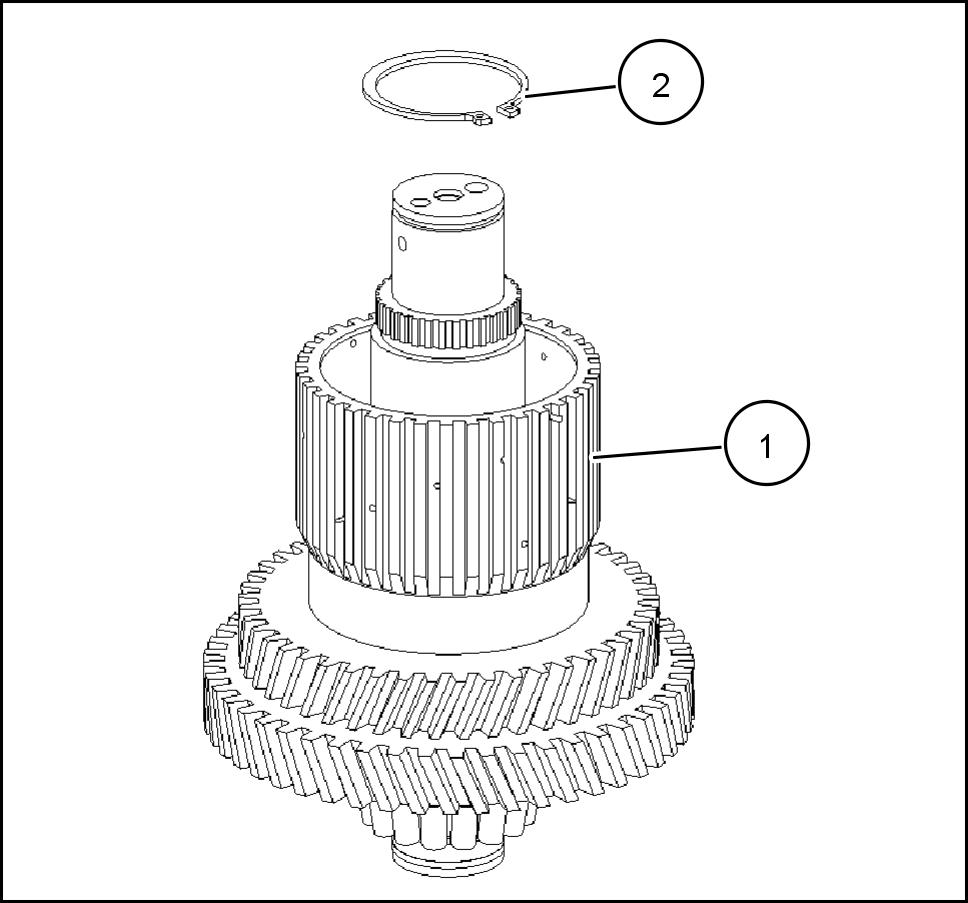

Secure the idler gear (1) using a retaining ring (2) .

Place O- rings (1) and (2) into the piston grooves and oil them. NOTE: Check the function the drain valve (3) . There must jamming the ball.

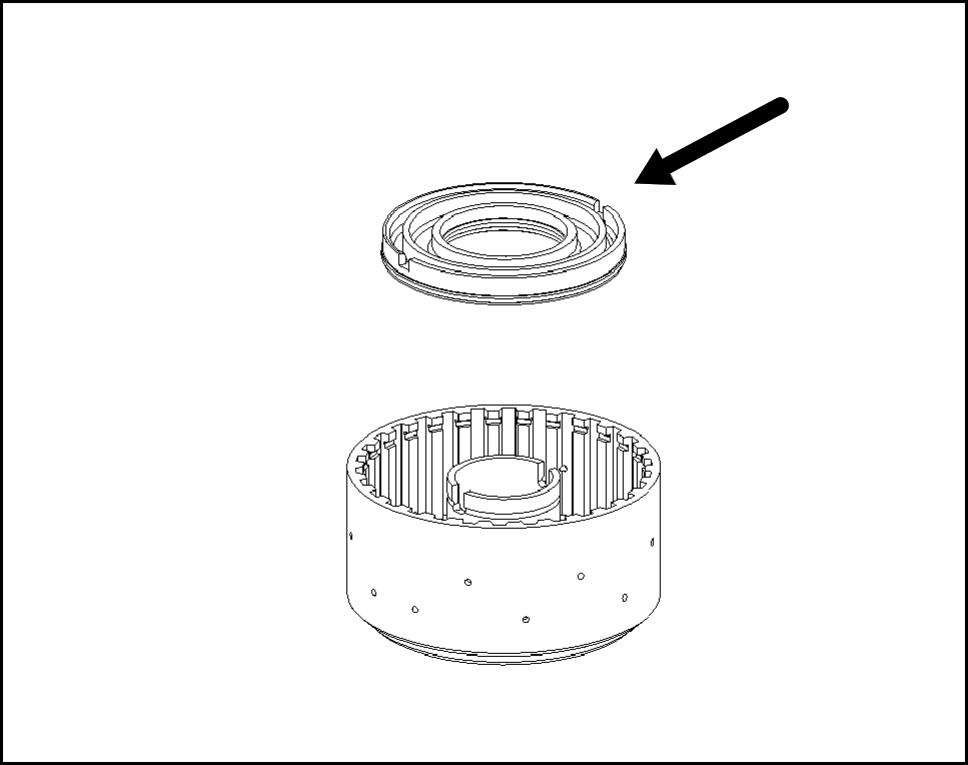

Place piston into the disk carrier . NOTE: Observe installation position.

RCPH1 1WHL046BBU 6

RCPH1 1WHL045BBU 7

RCPH1 1WHL072BBU 8
