Removing the WLAN Module

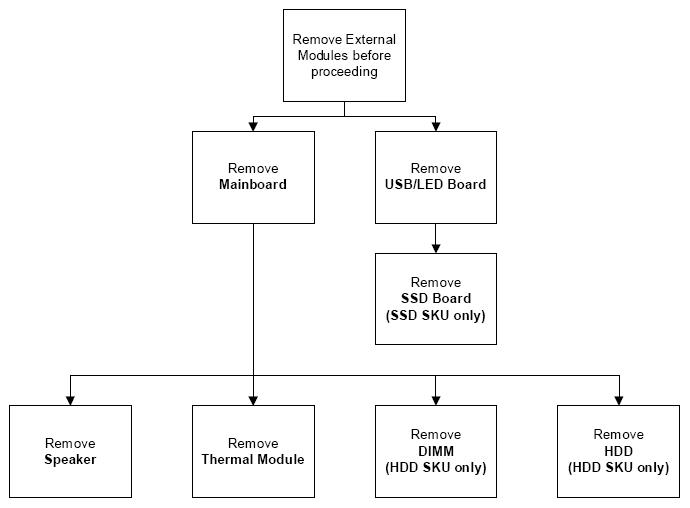

Main Unit Disassembly Flowchart

Screw List Step Screw Quantity Color

Part No. WLAN M2*3 (NL) 1 Black 86.S0207.001 USB/LED/Power Board (HDD SKU) M2*3 (NL) 3 Black 86.S0207.001 USB/LED/Power Board (SSD SKU) M2*3 (NL) 4 Black 86.S0207.001 SSD Module M2*3 2 Black 86.S0207.001 Mainboard M2*3 1 Black 86.S0207.001 Speaker Module M2*3 4 Black 86.S0207.001 HDD Module M2.5*4 2 Black 86.D01V7.001 HDD Carrier M3*3.5 4 Black 86.TDY07.003 Thermal Module M2*3 3 Black 86.S0207.001
