Removing the USB/LED/Power/Card Reader Board

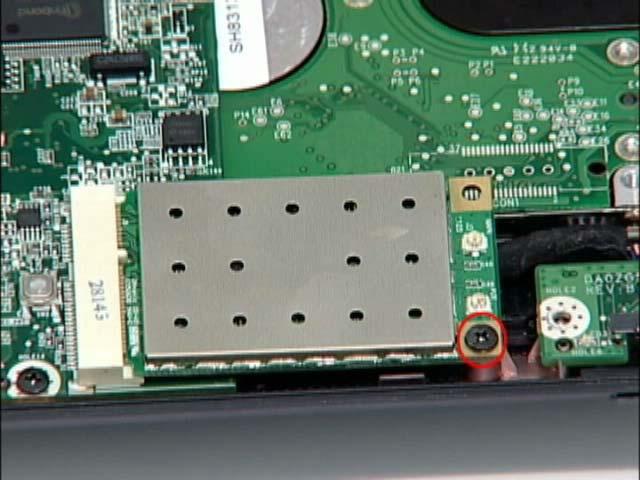

1. See “Removing the Battery Pack” on page 34. 2. Remove the securing screw as shown.

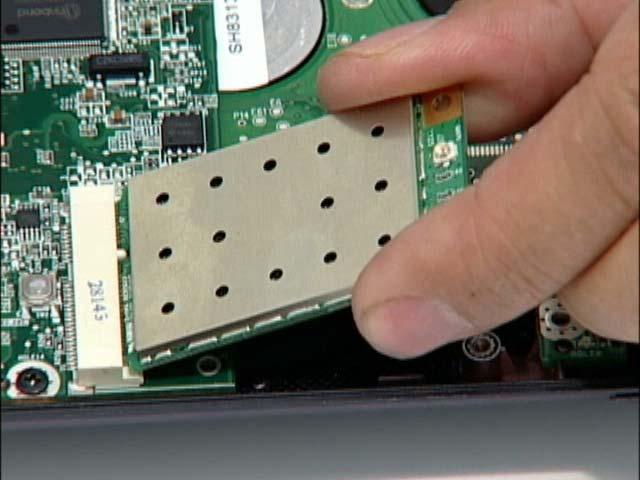

NOTE: The antenna cables were removed during the LCD module disassembly. See “Removing the LCD Module” on page 41. 3. The module pops up. Remove it from the mainboard as shown.

Step

Size WLAN Module M2*3 (NL) 1 Quantity Screw Type
