Removing the Camera Board

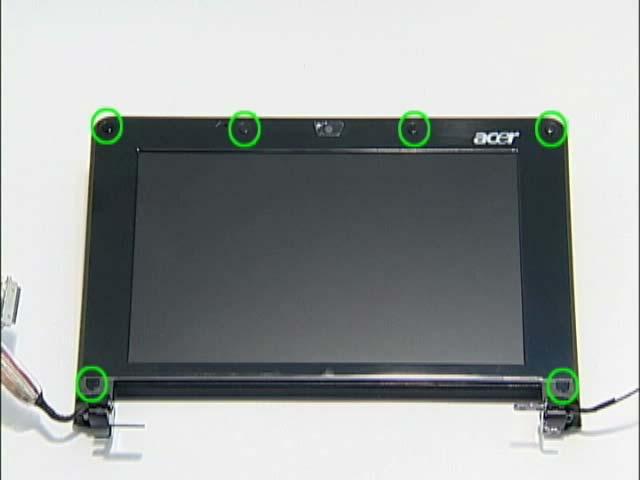

1. Remove the LCD Module. See “Removing the LCD Module” on page 41. 2. Remove the four round and the two semi-rectangular screw caps. 3. Remove the six (6) securing screws.

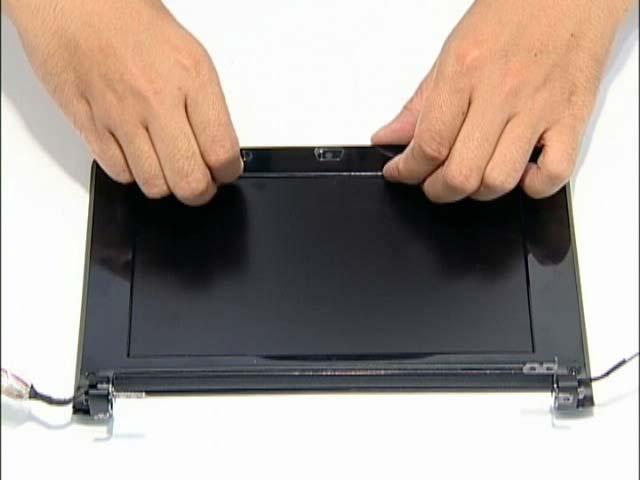

4. Starting from the inside edges, pry the inside of the bezel upwards from the panel. Continue moving left until the bezel is removed. If necessary, use a plastic pry to release the corners of the bezel.

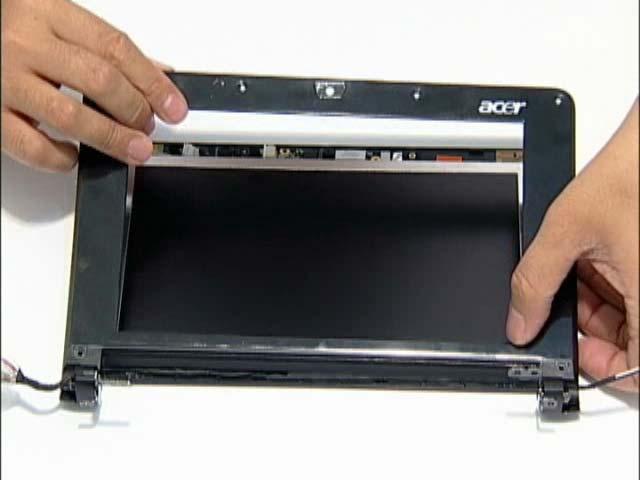

5. Lift up the bezel and remove it from the LCD Module.

Step

Size LCD Bezel M2*5 (NL) 6 Quantity Screw Type
