Replacing the LCD Cable and Brackets

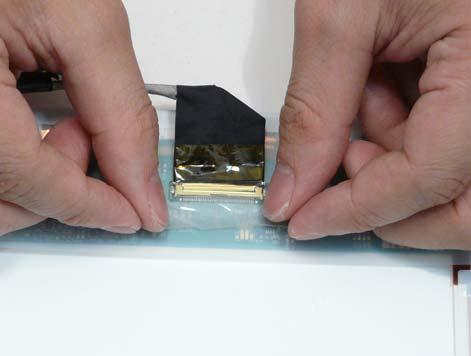

1. Replace and secure the connector by attaching the adhesive strip as shown. 2. Replace the LCD panel cable as shown on the underside of the panel.

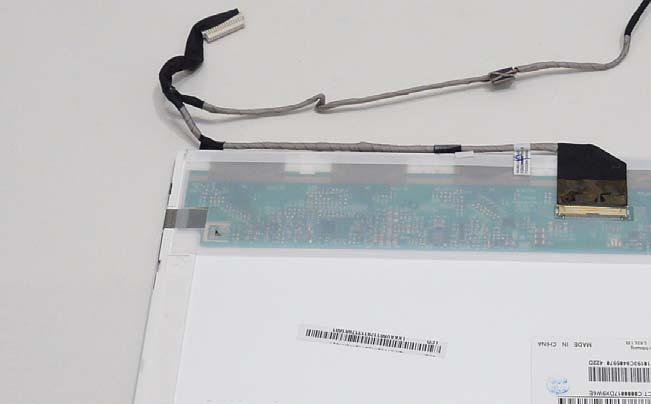

IMPORTANT: Ensure that the LCD Cable runs as shown to avoid trapping when the Bezel is replaced.

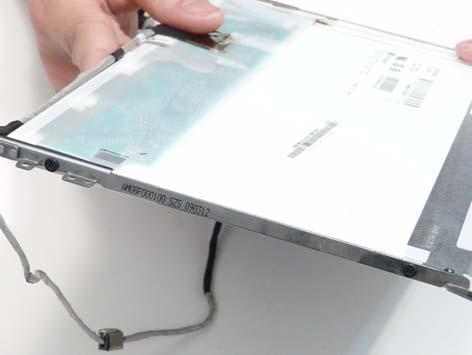

3. Secure the brackets to the panel using four bracket screws (two each side).
