Reassembling the 3G Module

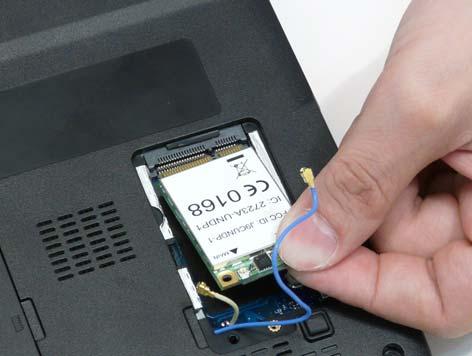

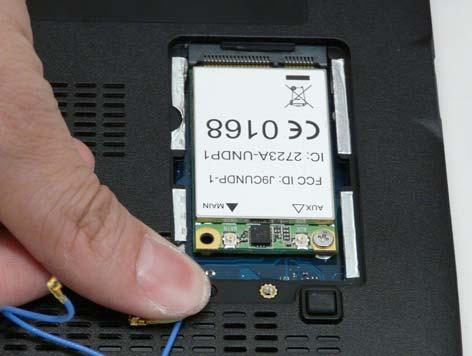

1. Turn the computer over. Insert the 3G Module into the socket. 2. Replace the single securing screw.

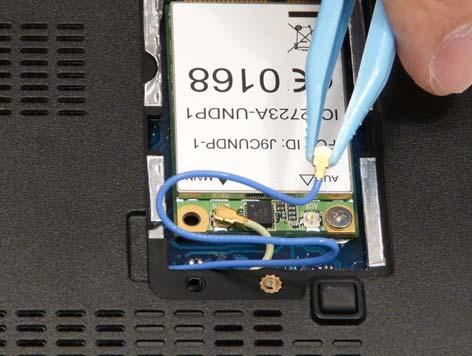

3. Connect the two 3G Antenna cables to the 3G Module. IMPORTANT: The yellow cable attaches to the M (Main) terminal and the blue cable attaches to the A (Aux) terminal.

Chapter 3 99
