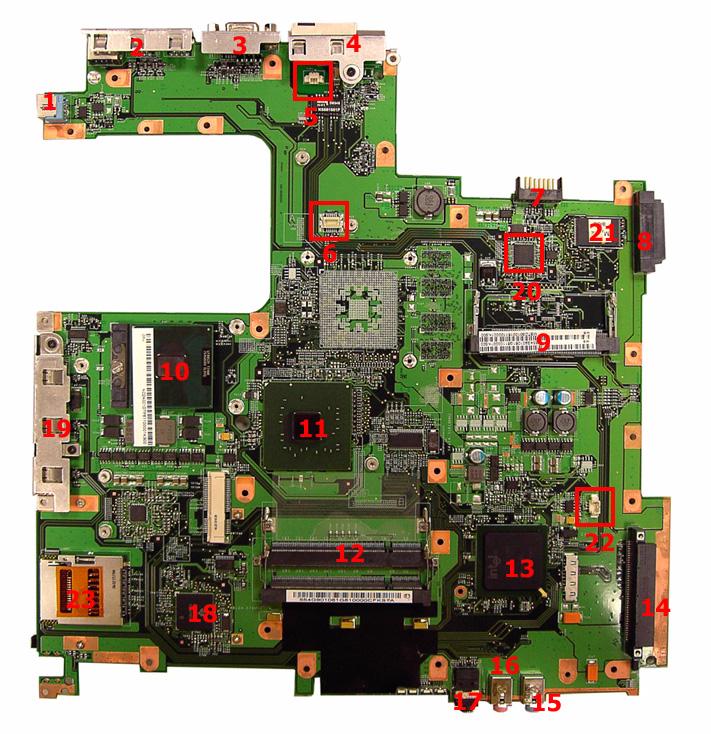

Jumper and Connector Location
Top View
No. Description No. Description
1 DC-in jack 2 USB connector 3 CRT connector 4 RJ11 & RJ45 connector 5 MDC module connector 6 MDC board connector 7 Main battery connector 8 ODD connector 9 Mini PCI slot 10 CPU 11 North bridge 12 DIMM slot 13 South bridge 14 HDD connector 15 Line-in jack 16 Microphone-in jack
No. Description No.
Description
17 Line-out jack 18 Cardbus controller 19 USB connector 20 LAN controller 21 BIOS ROM 22 RTC battery connector 23 5-in-1 card reader
