Chapter 5 Jumper and Connector Locations

Jumper and Connector Locations

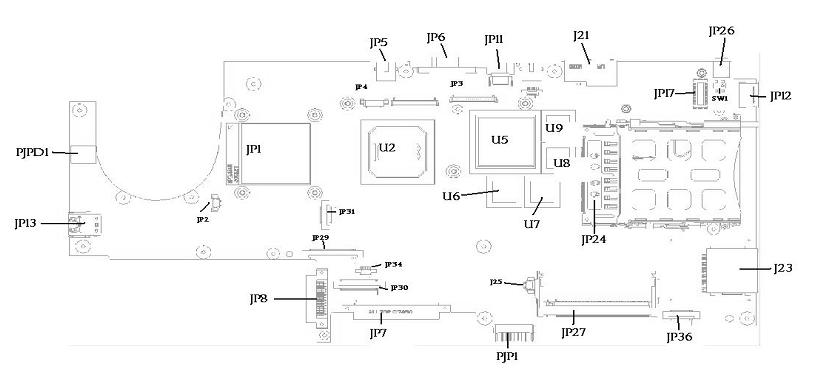

Top View

PJPD1 DC JACK JP5 TV-OUT CONNECTOR JP13 DUAL USB CONNECTOR JP6 CRT CORRECTOR JP1 CPU SOCKET JP11 SINGLE USB CONNECTOR JP2 FAN CONNECTOR JP3 LCD CONNECTOR JP31 LED CONNECTOR JP4 INVERTER CONNECTOR JP29 KEYBOARD CONNECTOR U2 NORTH BRIDGE JP8 CD-ROM CONNECTOR U5 GRAPHICS CHIP JP7 HDD CONNECTOR U6 VGA MEMORY CHIP JP34 TOUCHPAD CONNECTOR U7 VGA MEMORY CHIP JP30 SW DJ BOARD CONNECTOR U8 VGA MEMORY CHIP J25 NOT INSTALL U9 VGA MEMORY CHIP PJP1 BATTERY CONNECTOR JP24 CARD BUS SOCKET JP27 MINI PCI CONNECTOR J23 MS/SD/MMC CARD READER CONNECTOR JP36 SPEAKER CONNECTOR JP17 MDC CONNECTOR JP12 SINGLE USB CONNECTOR JP26 IEEE1394 CONNECTOR SW1 LID SWITCH J21 ETHERNET CONNECTOR

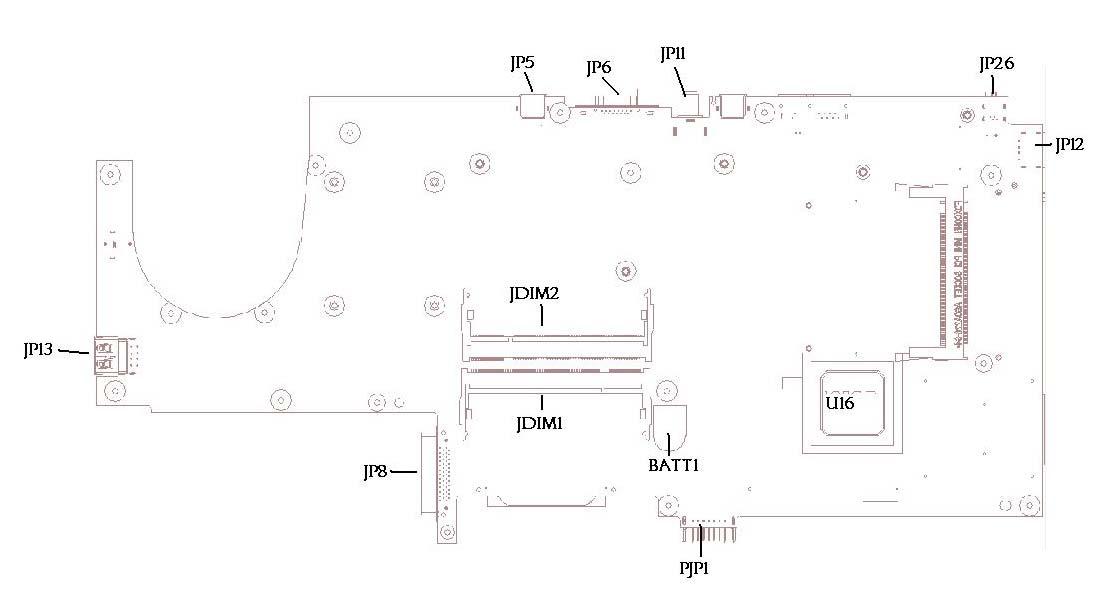

JP13 DUAL USB CONNECTOR JP5 TV-OUT CONNECTOR JP8 CD-ROM CONNECTOR JP6 CRT CONNECTOR JDIM1 MEMORY CONNECTOR JP11 SINGEL USB CONNECTOR JDIM2 MEMORY CONNECTOR JP26 IEEE1394 CONNECTOR BATT1 COIN CELL CONNECTOR JP12 SINGEL USB CONNECTOR PJP1 BATTERY CONNECTOR U16 SOUTH BRIDGE

SW Settings
