Removing the LCD Module

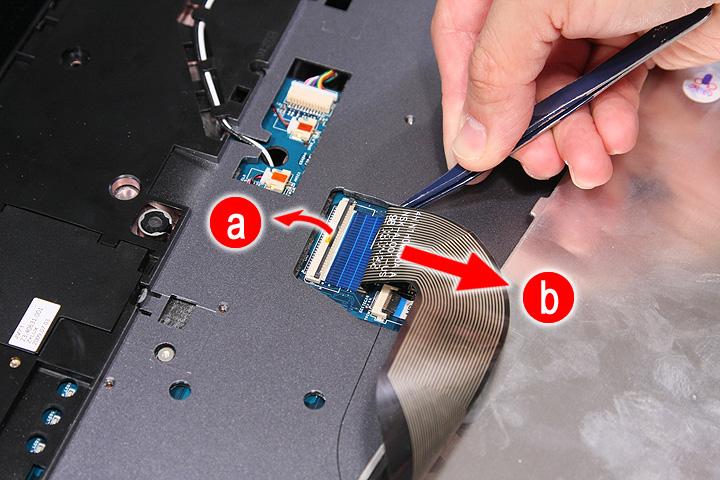

13. Release the latch (a) and disconnect the keyboard cable (b) from its connector on the main board and detach the keyboard.

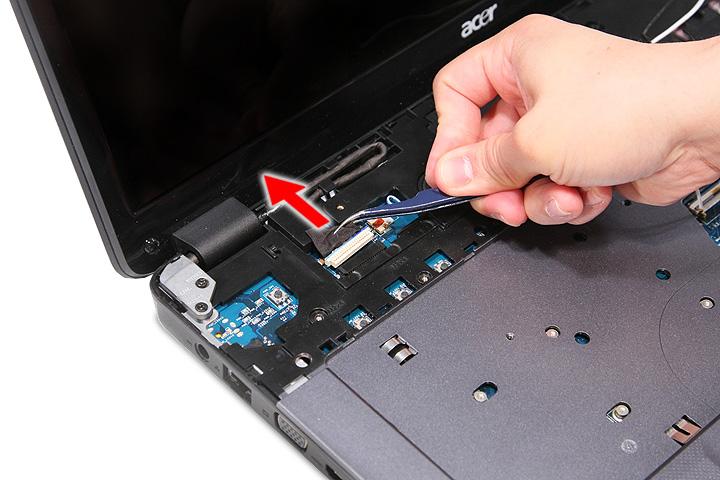

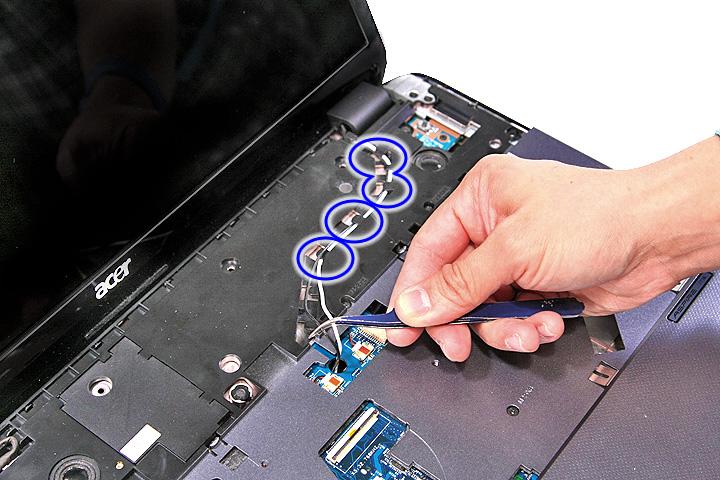

1. See “Removing the SD Dummy Card” on page 44. 2. See “Removing the Battery Pack” on page 45. 3. See “Removing the Back Cover” on page 46. 4. See “Removing the Hard Disk Drive Module” on page 48. 5. See “Removing the Wireless LAN Card” on page 50. 6. See “Removing the DIMM Module” on page 51. 7. See “Removing the Heatsink Module” on page 52. 8. See “Removing the CPU” on page 54. 9. See “Removing the Optical Drive Module” on page 55. 10. See “Removing the Middle Cover” on page 58. 11. See “Removing the Keyboard” on page 60. 12. Release the wireless antenna cables from the latches and carefully pull out the wireless antenna cables from the hole..

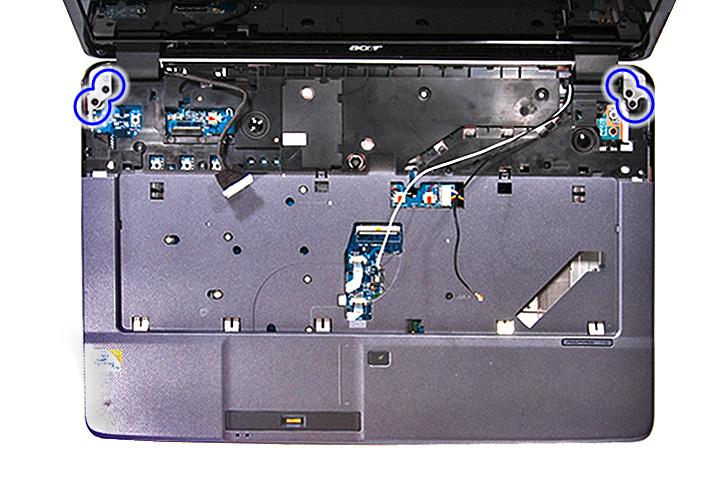

14. Remove the four screws (D) from the left and right hinges.

Size (Quantity) Color Torque Part No.

M2.5 x L10 (4) Black 3.0 kgf-cm 86.00F84.73A
