Removing the Optical Drive Module

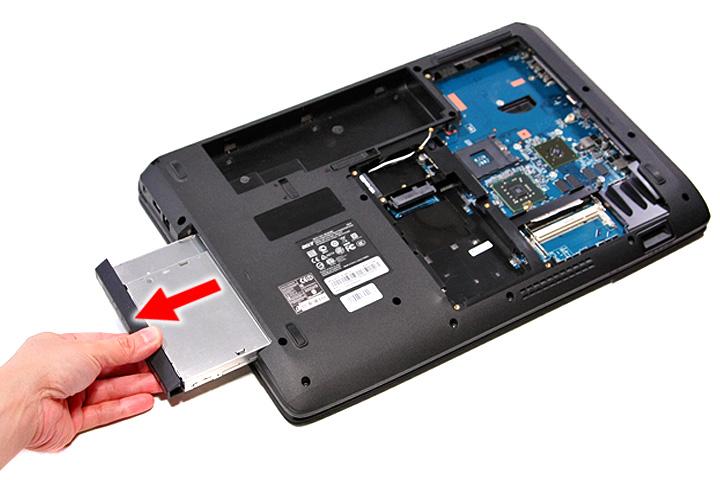

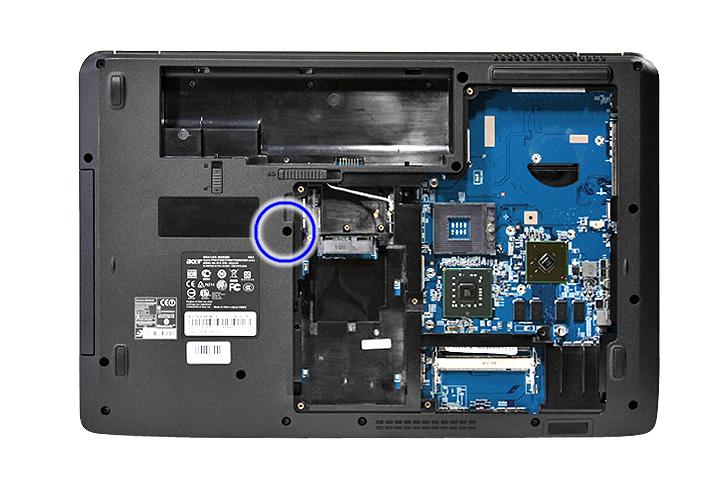

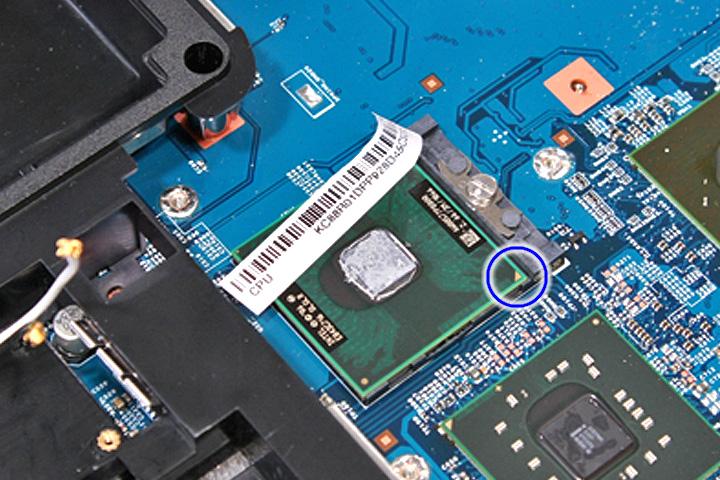

1. See “Removing the SD Dummy Card” on page 44. 2. See “Removing the Battery Pack” on page 45. 3. See “Removing the Back Cover” on page 46. 4. See “Removing the Hard Disk Drive Module” on page 48. 5. See “Removing the Wireless LAN Card” on page 50. 6. See “Removing the DIMM Module” on page 51. 7. See “Removing the Heatsink Module” on page 52. 8. See “Removing the CPU” on page 54. 9. Remove the one screw (C) securing the optical drive module to the system.

Size (Quantity) Color Torque Part No.

M2.5 x L6 (1) Black 3.0 kgf-cm 86.00E12.536

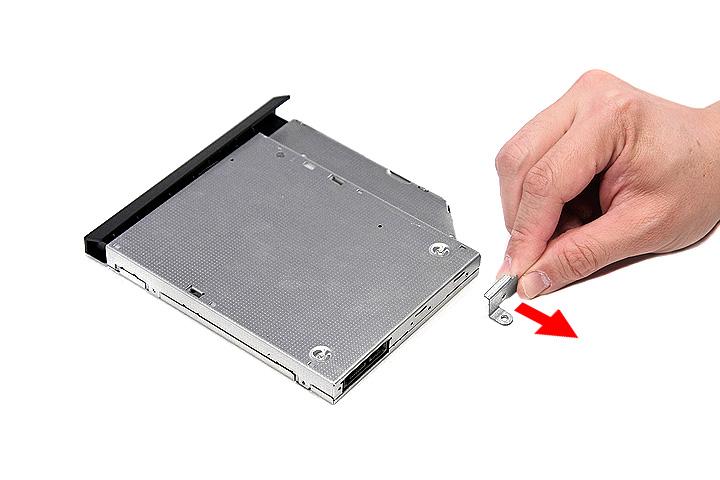

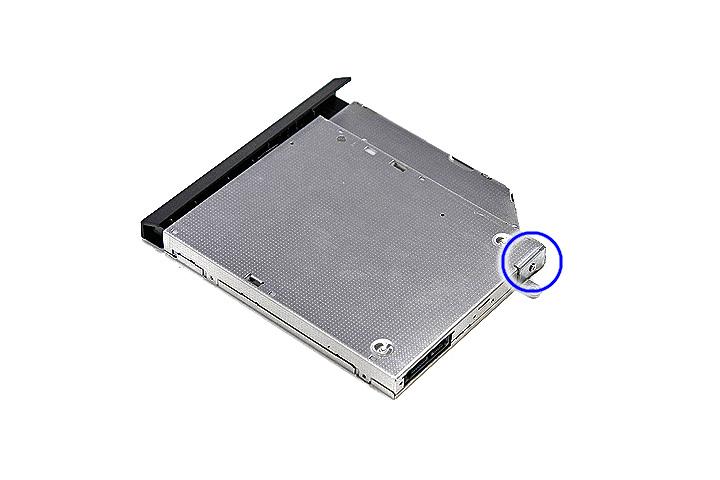

11. Remove the one screw (H) securing the locker bracket and remove the locker bracket from the optical disk drive module.

Size (Quantity) Color Torque Part No.

M2 x L3 (1) Silver 1.6 kgf-cm 86.9A552.3R0
