Removing the Subwoofer Module

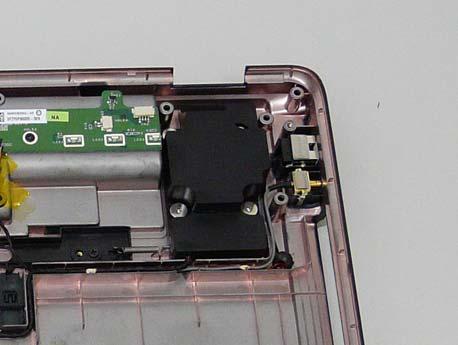

1. See “Removing the Upper Cover” on page 70. 2. Remove the four securing screws from the Subwoofer Module.

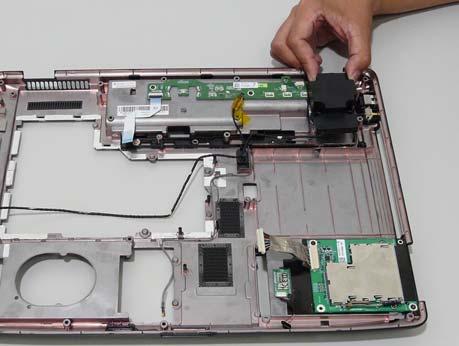

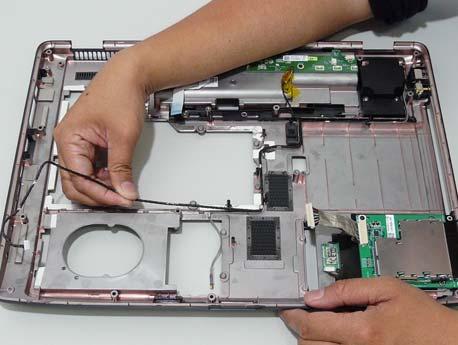

3. Grasp the cable by the end and guide it out of its housing as shown in the following images.

IMPORTANT:The housing guides are hooked to hold the cable in place. Do not pull the cable to remove it or damage can occur.

Step

Subwoofer Module

Size

M2.5*4 4

Quantity Screw Type
