Removing the Optical Disk Drive Module

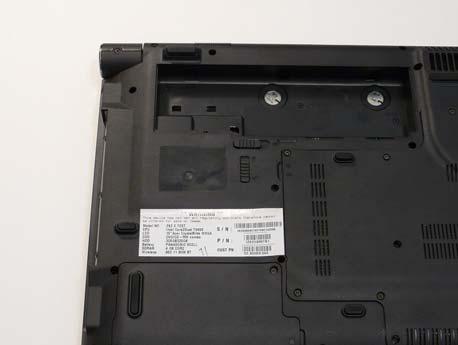

1. See “Removing the Battery Pack” on page 50. 2. Remove the Lower Cover. See “Removing the Lower Covers” on page 53. 3. Remove the screw securing the ODD module.

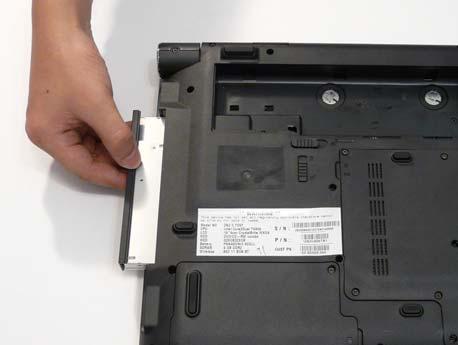

4. Grasp the ODD module as shown and pull out of the bay.

Step

Size

ODD Module M2.5*6.5-I (BZN(NYLOK-RED) 1

Quantity Screw Type

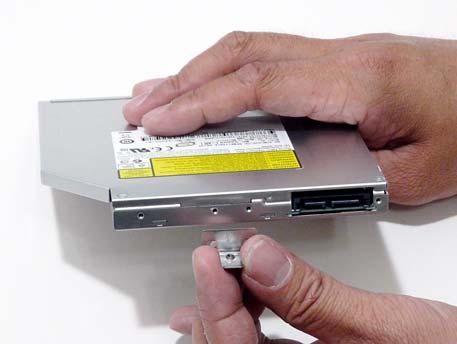

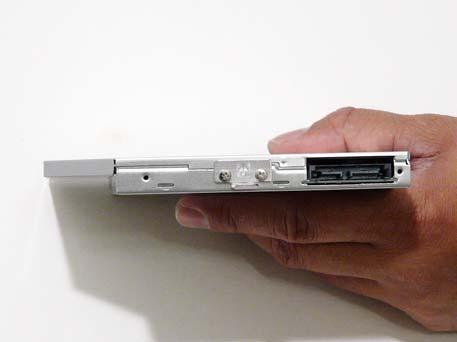

Step

Size

ODD Bracket M2.0*3.0-I (BKAG) (NYLOK) IRON 2

Quantity Screw Type

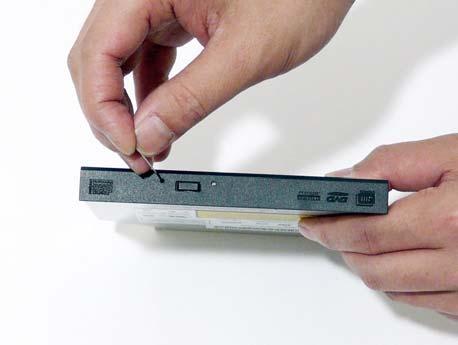

6. Insert a pin in the eject hole of the ODD to eject the ODD tray.

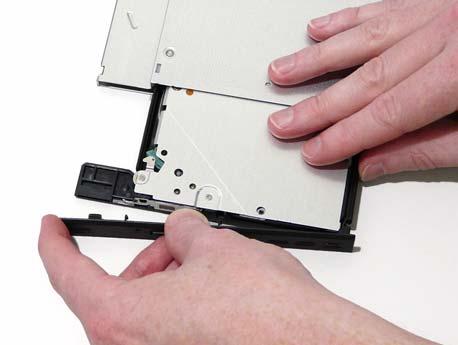

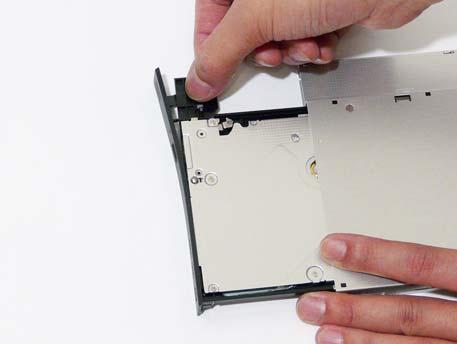

7. Press down on the locking catch to release the ODD cover and remove.
