Replacing the TouchPad Bracket
3. Run the Conductive cable along the cable channel using all the cable clips. 4. Run the LVDS cable along the cable channel using all the cable clips.

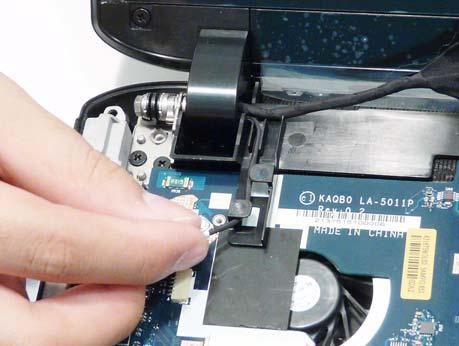

5. Connect the LVDS cable to the Mainboard as shown. 6. Connect the Conductive cable to the Mainboard as shown.
IMPORTANT: The TouchPad cannot removed from the Upper Cover. Replace the entire Upper Cover if the TouchPad malfunctions. 1. Insert the TouchPad Bracket into the upper cover so the tabs slide into the securing slots in the upper cover.
Step
TouchPad Bracket
Size
M2.5*3 2
Quantity Screw Type
3. Adhere the Finger Print Reader protection strip to the TouchPad Bracket as shown.

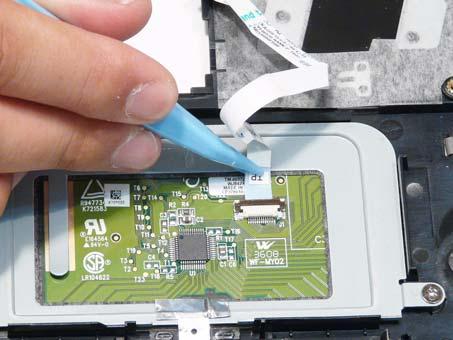

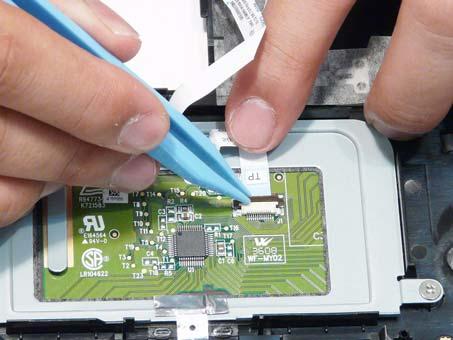

4. Connect the TouchPad FFC to the TouchPad and close the locking latch.
