Removing the Right Speaker Module

1. See “Removing the Upper Cover” on page 57. 2. Locate the Right Speaker Module on the Upper Cover as shown.

3. Remove the two (2) securing screws from the Right Speaker Module.

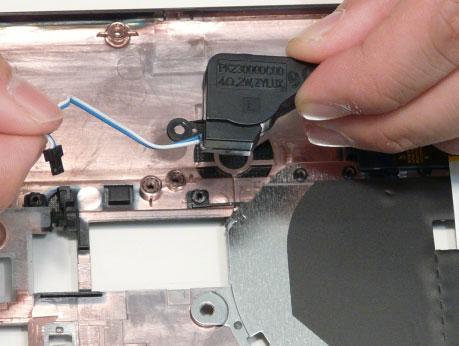

4. Remove the Right Speaker Module cable from the cable channel. Ensure that the cable is free from all cable clips.

Step

Right Speaker

Module

Size

M2*3 2

Quantity Screw Type
