Removing the LCD Brackets and FPC Cable

1. See “Removing the LCD Panel” on page 91. 2. Remove the four securing screws (two on each side) from the LCD Panel brackets.

2

Step

Size

LCD Brackets M2*3 4

Quantity Screw Type

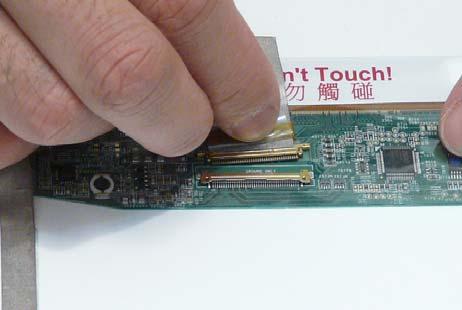

3. Turn the LCD Panel over on a clean surface. 4. Remove the cable from the panel as shown (2).

2 1
