Replacing the Button Board

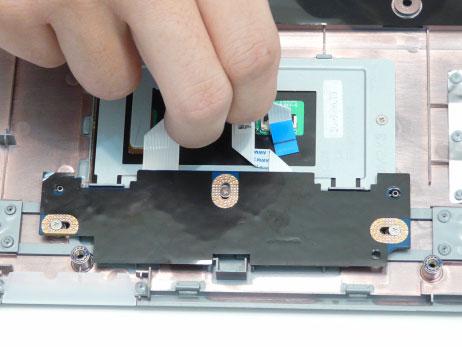

1. Insert the Mainboard FFC through the cover as shown.

2. Replace the three screws to secure the button board to the Upper Cover.

3. Slide the aminboard FFC through the cutout in the upper cover and adhere the FFCs to the upper cover.

Step

Size

Button Board M2*3 4

Quantity Screw Type
