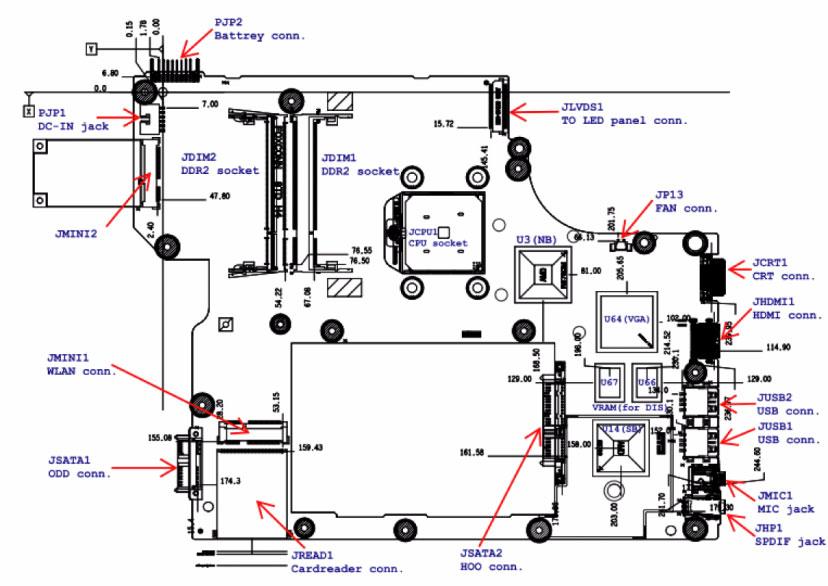

Bottom View

from Aspire 5534 Series Laptop Service Guide Manual -PDF DOWNLOAD

DLL Timing Control Registers, RCOMP settings

ITEM DESCRIPTION ITEM

DESCRIPTION

PJP1 Connect to Battery JHP1 Connect to external SPDIF PJP2 DC-IN jack JREAD1 Card reader JDIM1 / JDIM2 DDR2 Memory socket JCRT1 CRT Connector JLVDS1 Connect to LED Panel JP13 FAN Connector JSATA1 Connect to SATA ODD JCPU1 CPU socket JSATA2 Connect to SATA HDD U3 NB JMINI1 Connect to WLAN U14 SB JMINI2 Reserved U64 M92-S2LP VGA JUSB1 / JUSB2 USB Connector U66 / U67 VRAM (for DIS) JMIC1 Connect to external microphone
