Removing the Optical Drive Module

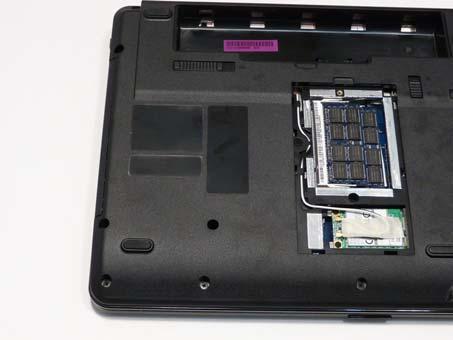

1. See “Removing the Battery Pack” on page 42. 2. Remove the screw securing the ODD module.

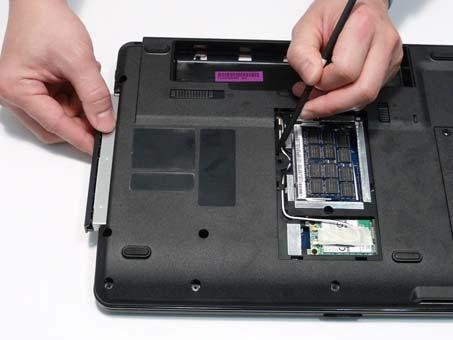

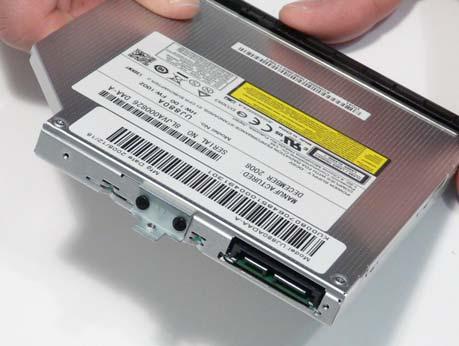

3. Insert a suitable tool into the access slot in the battery bay as shown. Gently lever the ODD module out of the chassis. 4. Pull the optical drive module out from the chassis.

Step

Size

ODD Module M2.5*8 1

Quantity Screw Type

Step

Size

ODD Bracket M2*3 2

Quantity Screw Type

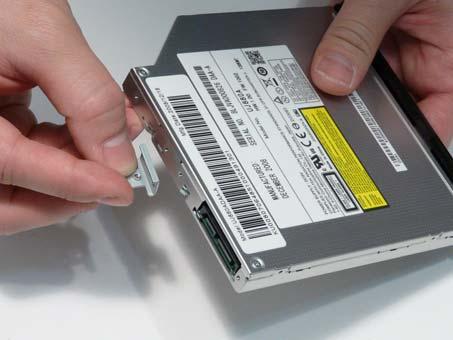

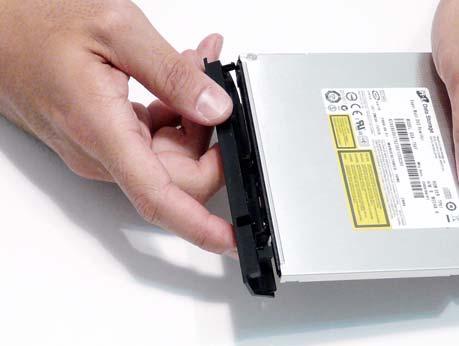

6. Remove the ODD bezel by pulling the top edge downward and clear of the module.
