Replacing the ODD Module

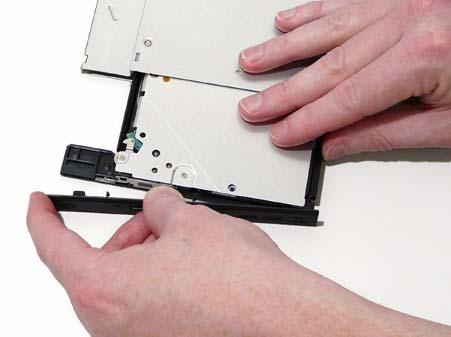

1. With the ODD tray in the eject position, replace the

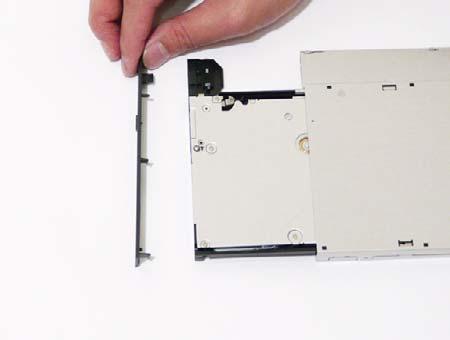

ODD cover on the new ODD Module. 2.Press the cover into the tray, bottom edge first, to secure.

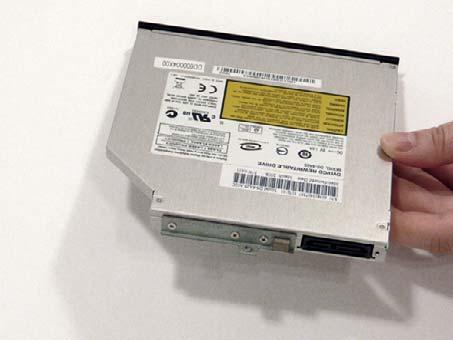

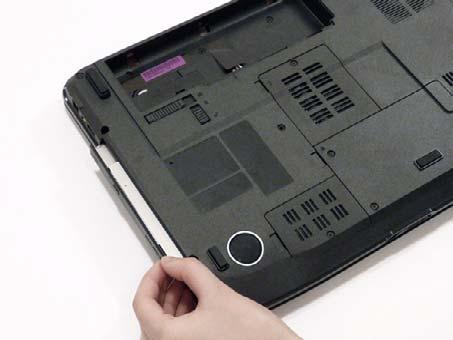

3.Turn the ODD over and replace the three securing screws. 4.Slide Module in chassis and press until Module is flush with chassis.

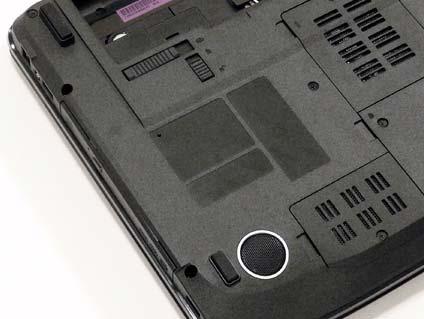

5.Replace the single screw to secure the Module.
