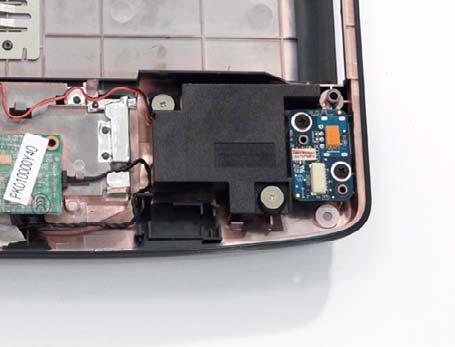

Removing the USB Board

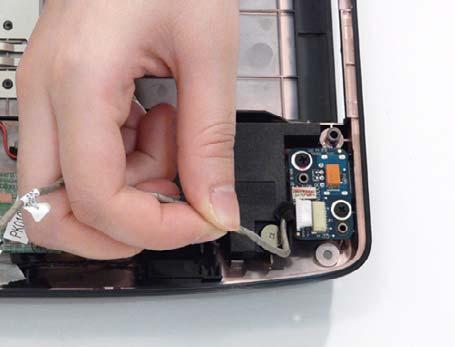

1. See “Removing the Upper Cover” on page 70. 2. See “Removing the Bluetooth Module” on page 86. 3. Remove cable from the USB board.

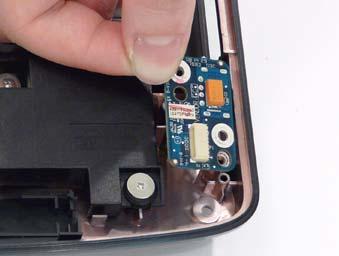

4. Remove the two securing screws from the USB board and lift clear of the chassis.

Step

Size

USB board M2.5*4 (NL) 2

Quantity Screw Type
