Removing the Right Speaker Module

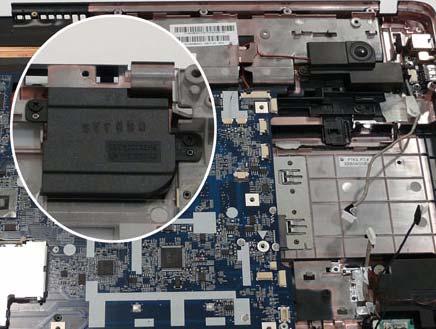

1. Remove the Upper Cover. See “Removing the Upper Cover” on page 70. 2. Remove the two securing screws from the speaker module.

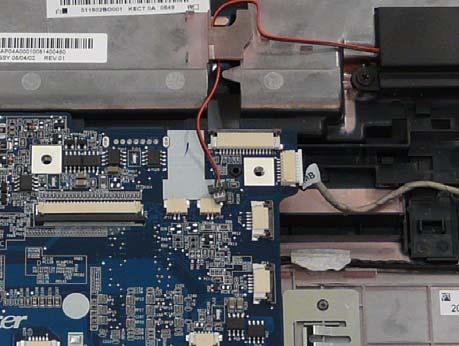

3. Disconnect the speaker cable from the mainboard.

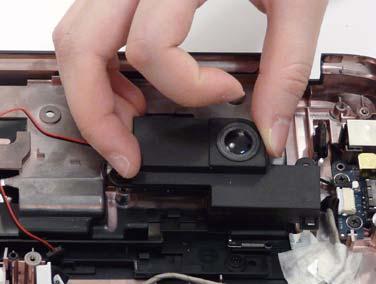

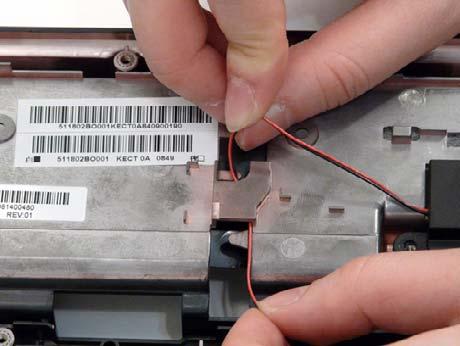

4. Pull the cable completely through the housing, and remove the speaker module.

Step

Size

Speaker M2.5*4 (NL) 2

Quantity Screw Type
