Removing the Touch Pad Bracket

Step

Left Speaker Module

Size

M2.5*4 (NL) 2

Quantity Screw Type

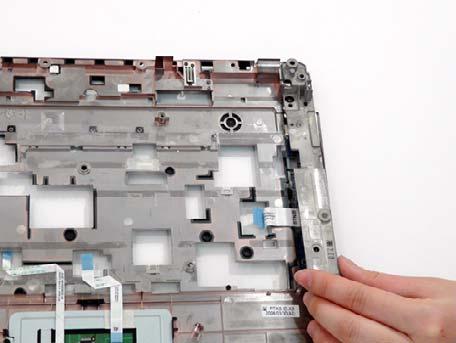

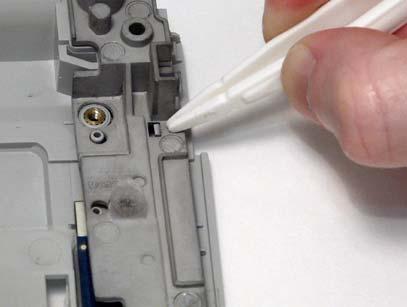

5. Firmly lift and rotate the saddle counter-clockwise to remove, paying attention to the securing clip.

1. See “Removing the Upper Cover” on page 70. 2. Disconnect the Touch Pad FFC from the Touch Pad board.

3. Move the Finger Print Reader FFC cable out of the way to prevent damage, and pull back the securing foil on the bracket.

4. Remove the two securing screws from the Touch Pad bracket.

Step

Size

Touch Pad Bracket M2*3 (NL) 2

Quantity Screw Type

5. Remove the Touch Pad bracket.

IMPORTANT:The Touch Pad cannot be removed individually. To replace the Touch Pad, replace the entire Upper Cover.
