Removing the Antenna

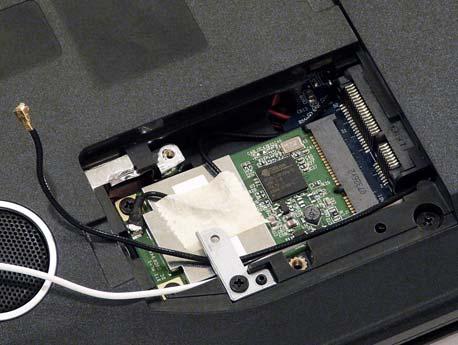

WARNING:Do not attempt to pull the antenna cables under the WLAN bracket to prevent stripping of the cable. 1. See “Removing the WLAN Module” on page 54. 2. Remove the securing screw, located on the WLAN bracket, and remove the bracket.

NOTE: Move the antenna cables out of the way to allow for easier access.

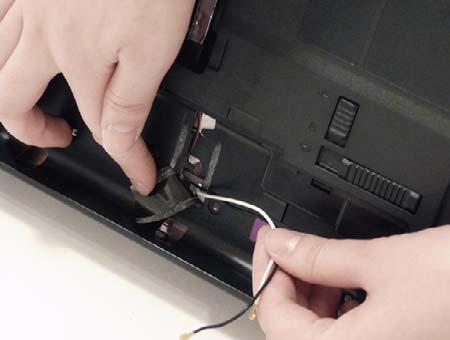

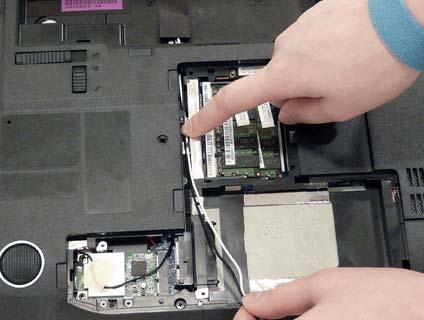

3. Remove the Antenna Cables from the securing guides as shown.

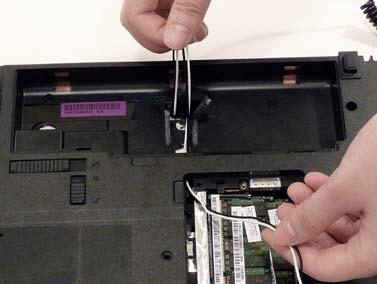

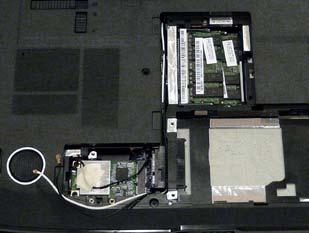

4. Using one hand, pull the cables completely through the battery housing.

NOTE: Do not remove the adhesive tape.

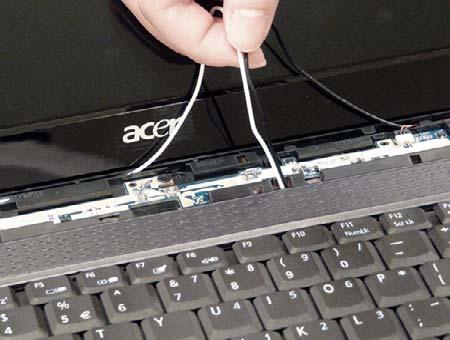

5. Push the cables through the chassis, then turn over the computer and pull them completely through.
