Removing the Hard Disk Drive Module

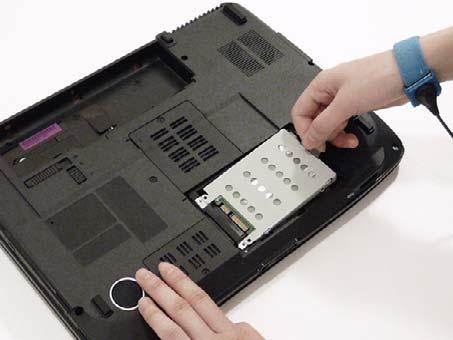

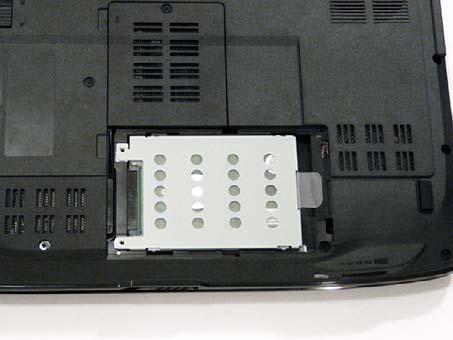

1. See “Removing the Battery Pack” on page 48. 2. Remove the HDD cover, See “Removing the Lower Covers” on page 51. 3. Use the mylar tab to slide and lift up the hard disk drive module to remove.

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.

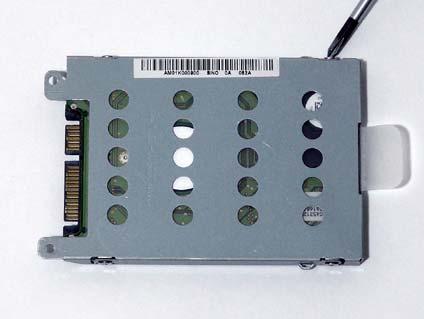

Step

Size

HDD Carrier M3*3 (NL) 4

Quantity Screw Type

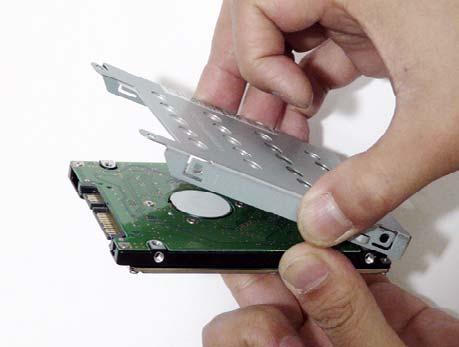

5. Remove the HDD from the carrier.
