DOS Flash Utility

Perform the following steps to use the DOS Flash Utility: 1. Press F2 during boot to enter the Setup Menu. 2. Select Boot Menu to modify the boot priority order, for example, if using USB HDD to Update BIOS, move

USB HDD to position 1.

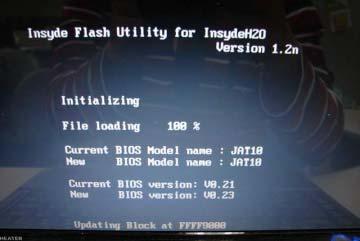

3. Execute the IFLASH.BAT batch file to update BIOS. The flash process begins as shown.

InsydeH20 Setup Utility Rev 3.5 Information Main Advanced Security Power Boot Exit Item Specific Help

Boot priority order:

Use <↑> or <↓> to select a device, then press 1. IDE0 : ST9160310AS <F5> to move it down the 2. IDE1 : Slimtype DVD A DS8A2S list, or <F6> to move 3. USB FFD : it up the list. Press 4. Network Boot : Atheros Boot Agent <Esc> to escape the menu 5. USB HDD : 6. USB CDROM :

F1 Help ↑↓ Select Item F5/F6 Change Values F9 Setup Default ESC Exit ←→ Select Menu Enter Select SubMenu F10 Save and Exit
