Replacing the ODD Module

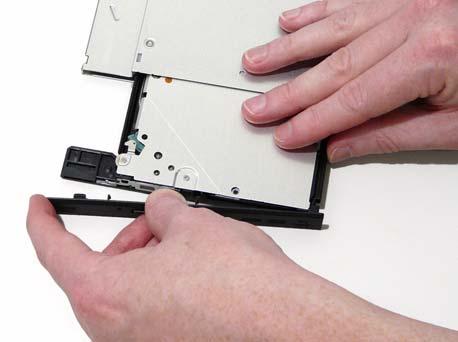

1. With the ODD tray in the eject position, replace the

ODD cover on the new ODD Module. 2.Press the cover into the tray, bottom edge first, to secure.

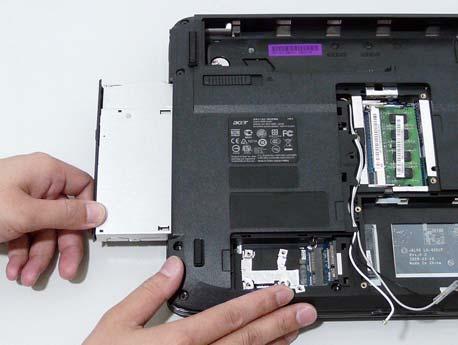

3.Turn ODD Module around and secure bracket with three screws. 4.Slide the module in the chassis and press until the module is flush with the chassis.

5.Replace the single screw to secure the Module.
