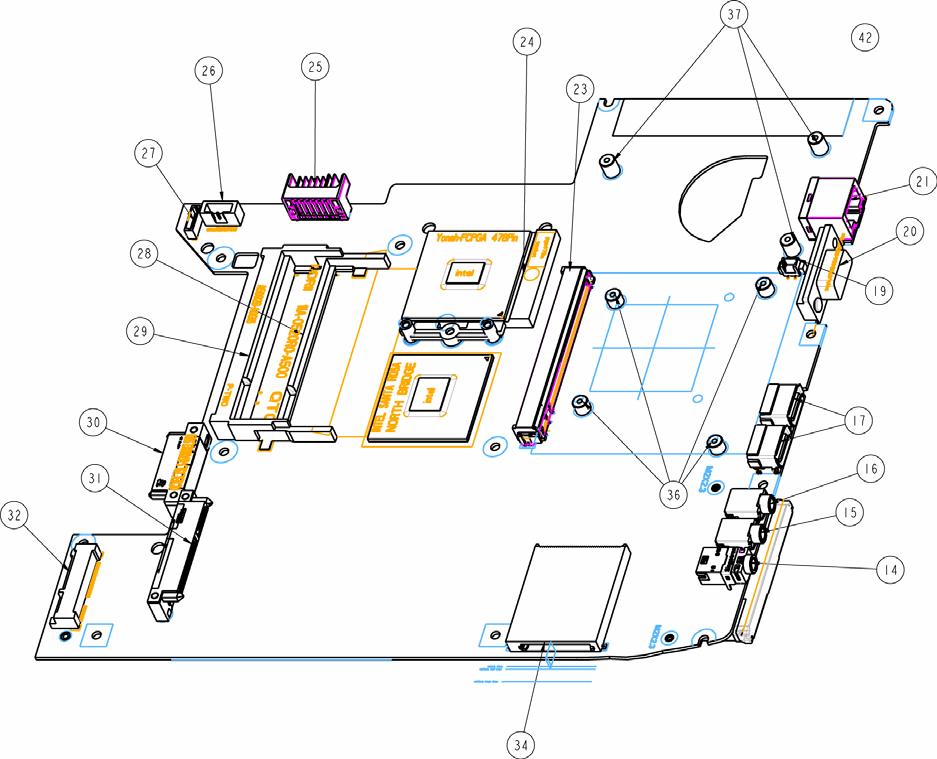

Bottom View

Location Description Location Description

14 SPDIF Conn 27 USB PCB to MB 15 Audio Conn (pink) 28 DDR2 5.2 mm (Rev.) 16 Audio Conn (blue) 29 DDR2 9.2 mm (Rev.) 17 USB (single Rev) 30 ODD SATA Conn 19 Fan Conn 31 HDD SATA Conn 20 CRT Conn (blue) 32 Mini PCI Express (5.2) 21 RJ45 34 Card Reader 23 MXM Conn 36 MXM Standoff (M2xH4) 24 CPU Socket 37 Fan Standoff (M2xH6)—UMA only 25 Battery Conn 42 ICL50 MB Fan Standoff—DIS only 26 DCIN Cable Conn
