Replacing the Modem Module

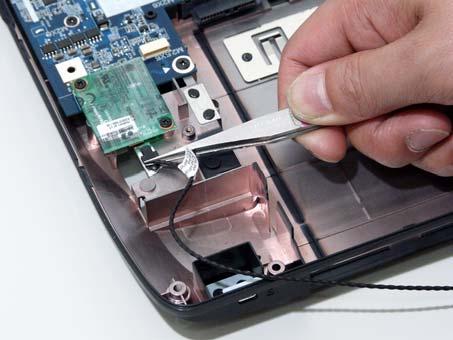

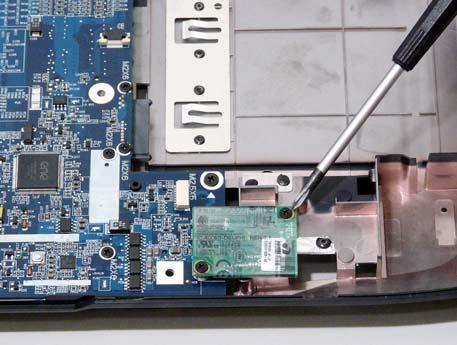

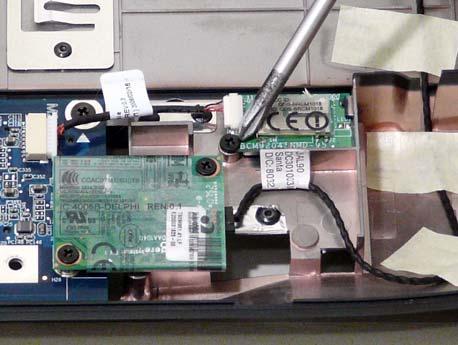

1. Replace the Modem Module and secure the two screws as shown. 2.Connect the Modem cable to the Modem Module as shown.

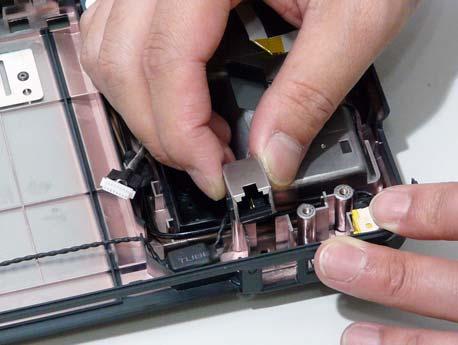

3.Connect the RJ-11 port to the leftside of the Lower

Cover. 4.Replace the adhesive strips to secure the Modem cable to the Lower Cover.
