Removing the LCD Bezel

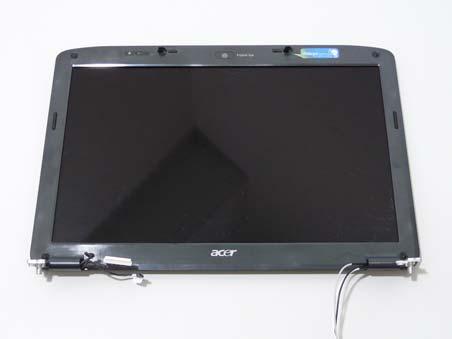

1. See “Removing the LCD Module” on page 66. 2. Remove the two upper and two lower bezel screw caps.

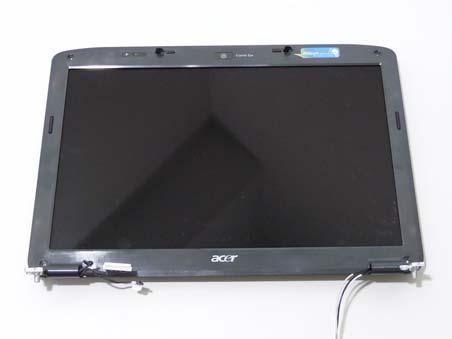

3. Remove the four securing screws from the LCD module.

Step

Size

LCD Bezel M2.5*5 (NL) 4

Quantity Screw Type

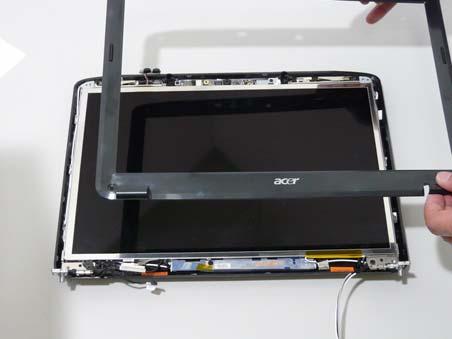

4. Starting from the inside edges of the bezel, pry the bezel upwards and away from the panel. Move along the sides until all sides of the bezel are removed.

NOTE: If necessary, use a plastic pry to lift up the outside edges of the bezel.
