Removing the Finger Print Reader

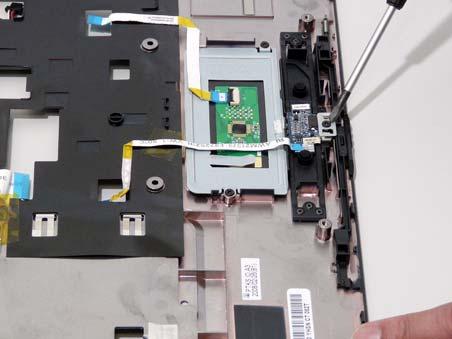

1. See “Removing the Upper Cover” on page 68. 2. Remove the securing screw from the Finger Print Reader board.

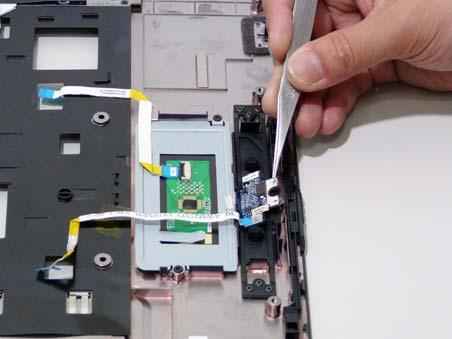

3. Remove the Finger Print Reader board from the Upper Cover.
1 minute read
1. See “Removing the Upper Cover” on page 68. 2. Remove the securing screw from the Finger Print Reader board.
3. Remove the Finger Print Reader board from the Upper Cover.
