Removing the Touch Pad Bracket

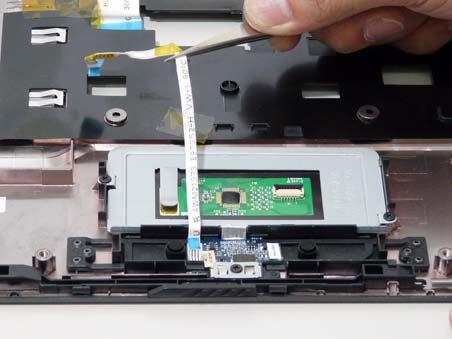

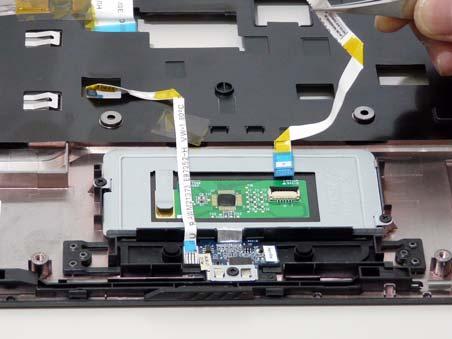

1. See “Removing the Upper Cover” on page 68. 2. Disconnect the Touch Pad cable from the Touch Pad board.

4. Remove the two securing screws from the Touch Pad bracket.

Step

Size

Touch Pad Bracket M2*3 (NL) 2

Quantity Screw Type

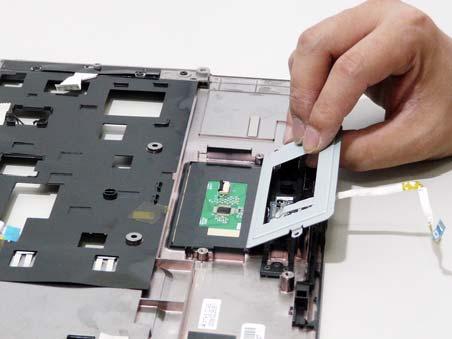

5. Remove the Touch Pad bracket.

IMPORTANT:The Touch Pad cannot be removed individually. To replace the Touch Pad, replace the entire Upper Cover.
