Removing the Optical Drive Module

1. See “Removing the Battery Pack” on page 44. 2. Remove the Memory cover. See “Removing the Lower Covers” on page 47. 3. Remove the screw securing the ODD module.

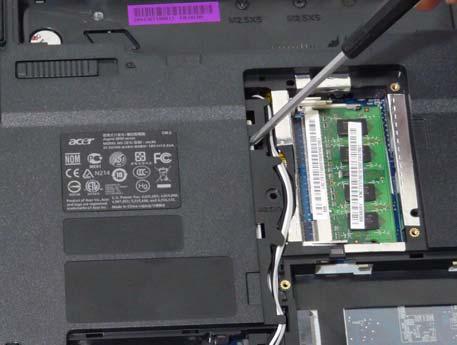

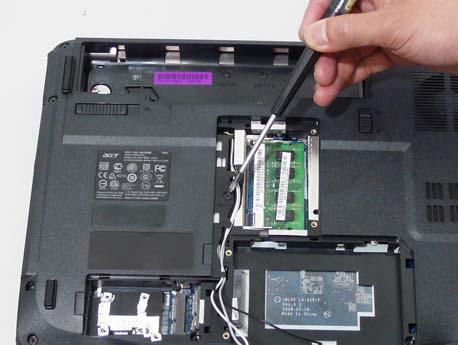

4. Carefully insert a screw driver to release the locking latch.

NOTE: A plastic screw driver is recommended to prevent scratching the surface of the computer.

Step

Size

ODD Module M2.5*5(NL) 1

Quantity Screw Type

6. Remove the three screws securing the ODD bracket and remove the ODD bracket from the optical disk drive module.

Step Size Quantity Screw Type

ODD Bracket M2*3 (NL) 3

7. Insert a pin in the eject hole of the ODD to eject the ODD tray.
