Replacing the Mainboard

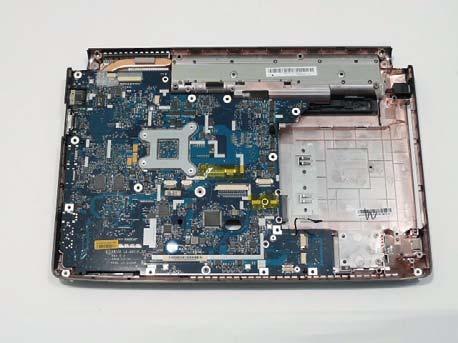

1. Ensure that the Mainboard is face up. Place the Mainboard in the chassis, left hand edge first to allow the

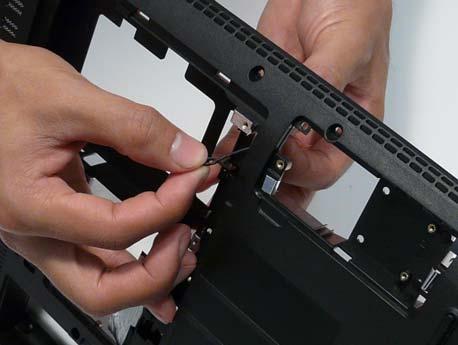

I/O Ports through the casing, then lower it into place. Be sure to align the securing pins and slide the RJ-11 cable through the groove in the main board as shown

Step

Size

Mainboard M2.5*3 1

Quantity Screw Type

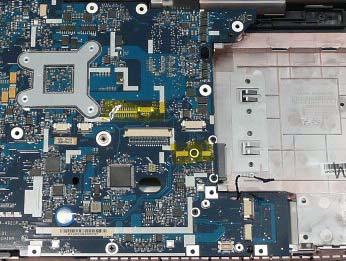

NOTE: Make sure the I/O ports are positioned correctly through the lower cover, and the screw sockets are visible through the mainboard.
