Removing the Optical Disk Drive Module

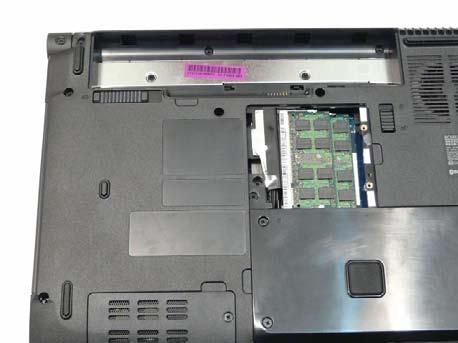

1. See “Removing the Lower Covers” on page 46. 2. Remove the single screw securing the ODD module in place.

3. Insert a suitable plastic tool as shown and push the ODD Module out of the bay.

Step

Size

ODD Module M2.5*5 1

Quantity Screw Type

Step

Size

ODD Bracket M2*3 2

Quantity Screw Type

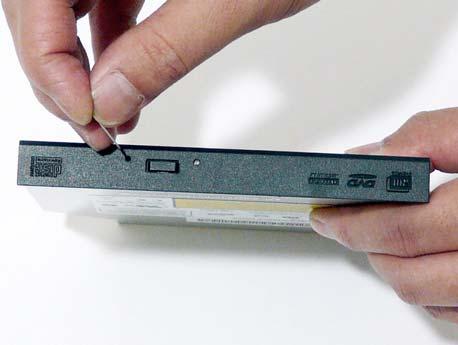

5. Insert a pin in the eject hole of the ODD to eject the ODD tray.

6. Press down on the locking catch to release the ODD cover and remove.
