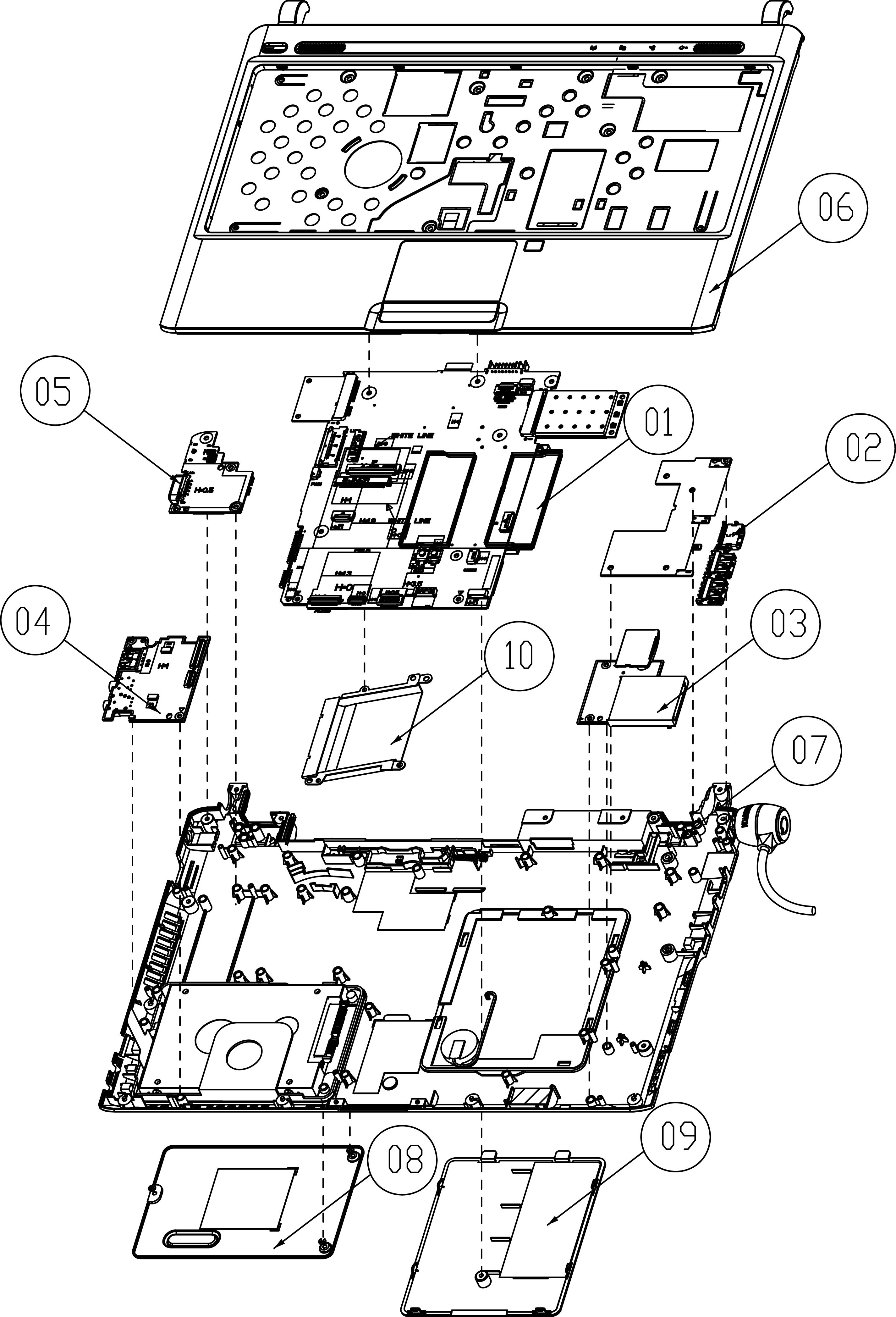

Aspire 3810T/3810TG/3810TZ/3810TZG Exploded Diagram

ITEM PART NO DESCRIPTION Q’TY 1 1310A2264501 ASSEMBLY,MODULE,MAIN 1 2 1397B0058001 ASSEMBLY,MODULE,USB 1 3 1397B0056101 ASSEMBLY,MODULE,CARD READER 1 4 1397B0056601 ASSEMBLY,MODULE,AUDIO 1 5 1397B0056301 ASSEMBLY,MODULE,VGA 1 6 1510B0696701 ASSEMBLY,CASE,TOP 1 7 1510B0697901 ASSEMBLY,CASE,BOTTOM,OFFLINE 1 8 1510B0698101 ASSEMBLY,COVER,HDD,OFFLINE 1 9 1510B0698001 ASSEMBLY,COVER,MEMORY,OFFLINE 1 10 1510B0722101 ASSEMBLY,BRACKET,FAN,OFFLINE 1

ITEM PART NO DESCRIPTION Q’TY 1 1510B0696501 ASSEMBLY,BASE 1 2 6054B0636401 NAMEPLATE 1 3 1700B0169801 ASSEMBLY,PACKAGING,COUNTRY KIT 1 4 1700B0166701 ASSEMBLY,PACKAGING,LABEL 1 5 1510B0696601 ASSEMBLY,BATTERY 1 6 1510B0696801 ASSEMBLY,MEMORY 1 7 1510B0697601 ASSEMBLY,KEYBOARD 1 8 1510B0697001 ASSEMBLY,HDD 1 9 1510B0696901 ASSEMBLY,SSD 1 10 1510B0697401 ASSEMBLY,DISPLAY 1 11 1510B0697101 ASSEMBLY,WIFI 1 12 1510B0697301 ASSEMBLY,BLUETOOTH MODULE 1 13 1510B0697201 ASSEMBLY,3G MODULE 1 14 6032B0030201 AC ADAPTER 1 15 6017A0034801 POWER CORD 1 16 N/A FA PARTS 1

ITEM PART NO DESCRIPTION Q’TY 1 1510B0698201 ASSEMBLY,CASE,REAR,DISPLAY,OFFLINE 1 2 1510B0698301 ASSEMBLY,CASE,FRONT,DISPLAY,OFFLINE 1 3 6047B0012101 CAMERA MODULE 1 4 1510B0730601 HINGE SET 1
